OSRAM DULUX LED D EM & AC MAINS

Choose your product version

6W 830 G24D-1

6W 840 G24D-1

7W 830 G24D-2

7W 840 G24D-2

9W 830 G24D-3

9W 840 G24D-3

18 7 W/3000 K G24d-2

18 7 W/4000 K G24d-2

18 7 W/6500 K G24d-2

26 10 W/3000 K G24d-3

26 10 W/4000 K G24d-3

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
DULUX LED D13 EM & AC MAINS 6W 830 G24D-1 G24d-1 6 W 220…240 V 30000 h 600 lm 13 W 120 ° No
DULUX LED D13 EM & AC MAINS 6W 840 G24D-1 G24d-1 6 W 220…240 V 30000 h 660 lm 13 W 120 ° No
DULUX LED D18 EM & AC MAINS 7W 830 G24D-2 G24d-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX LED D18 EM & AC MAINS 7W 840 G24D-2 G24d-2 7 W 220…240 V 30000 h 770 lm 18 W 120 ° No
DULUX LED D26 EM & AC MAINS 9W 830 G24D-3 G24d-3 9 W 220…240 V 30000 h 990 lm 26 W 120 ° No
DULUX LED D26 EM & AC MAINS 9W 840 G24D-3 G24d-3 9 W 220…240 V 30000 h 1100 lm 26 W 120 ° No
DULUX D LED EM & AC Mains 18 7 W/3000 K G24d-2 G24d-2 7 W 220…240 V 30000 h 640 lm 18 W 120 ° No
DULUX D LED EM & AC Mains 18 7 W/4000 K G24d-2 G24d-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX D LED EM 18 7 W/6500 K G24d-2 G24d-2 7 W 220…240 V 30000 h 700 lm 18 W 120 ° No
DULUX D LED EM & AC Mains 26 10 W/3000 K G24d-3 G24d-3 10 W 220…240 V 30000 h 920 lm 26 W 120 ° No
DULUX D LED EM & AC Mains 26 10 W/4000 K G24d-3 G24d-3 10 W 220…240 V 30000 h 1000 lm 26 W 120 ° No


DULUX D LED EM & AC Mains 18 7 W/3000 K G24d-2

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC, Conventional control gear (CCG)
Claimed equiv. conventional lamp power 18 W
Nominal current 54 mA
Type of current AC
Inrush current 10 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 70
Max. lamp number on MCB B10 A - CCG without compensation 70
Max. lamp number on MCB B10 A - CCG with compensation 70
Max. lamp number on MCB B16 A 40
Max. lamp number on MCB B16 A - CCG without compensation 40
Max. lamp number on MCB B16 A - CCG with compensation 40
Total harmonic distortion ≤ 30 %
Power factor λ > 0.50

Photometrical data

Luminous flux 640 lm
Nominal useful luminous flux 90° 640 lm
Luminous efficacy 91 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra > 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 148.00 mm
Length with base excl. base pins/connection 125,70 mm
Diameter 35,0 mm
Maximum diameter 35 mm
Product weight 65.00 g

Temperatures & operating conditions

Ambient temperature range -20…+35 °C
Maximum temperature at tc test point 67 °C

Lifespan

Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G24d-2
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class A+ 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference DULUX D18LED 7W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G24d-2
Length 148.00 mm
Height 35,0 mm
Width 35,0 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy installation
  • Low energy consumption
  • Easy relamping thanks to compact design
  • Operation directly on 230 V AC mains possible
Areas of application
  • Supermarkets and department stores
  • Walkways and corridors
  • Hotels, restaurants
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Rotatable base around its longitudinal axis (± 90°)
  • Lifetime up to 30,000 h
  • Single-ended two-pin plug-in G24d base
  • Type of protection: IP20
  • Mercury-free lamps
Safety advice
  • Not suitable for tandem operation.
  • The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075024915 Folding box
1		 37 mm x 37 mm x 151 mm 78.00 g 0.21 dm³
4058075024922 Shipping box
10		 193 mm x 82 mm x 165 mm 829.00 g 2.61 dm³

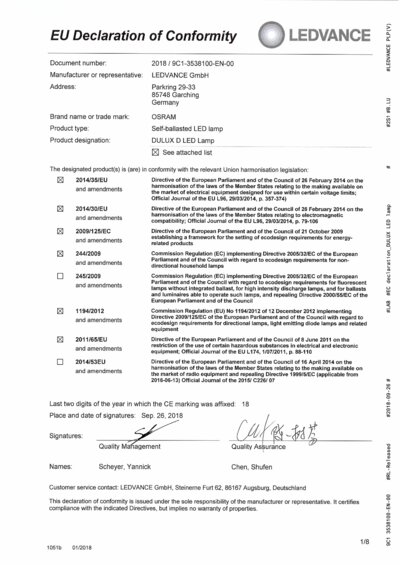

Declarations of conformity
EC Declaration of Conf ormity Dulux_D_18+26_L ED PDF (1.27 MB)

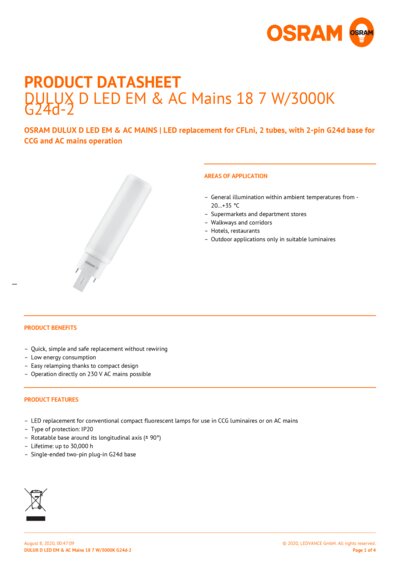

PRODUCT DATASHEET
DULUX D LED EM AC Ma ins 18 7 W 3000K G24d- 2 PDF (241.77 KB)
Product image: white background, diagonal with OSRAM logo
DULUX LED D/E HF 7W TIF (22.69 MB)

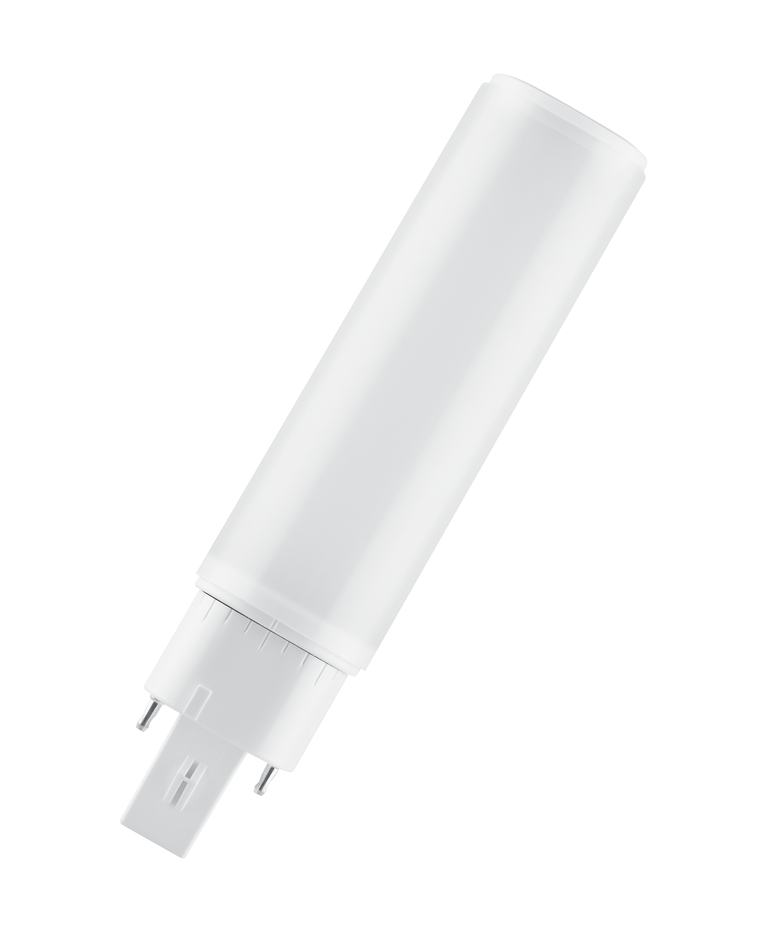

Product image: white background, diagonal
Dulux D 18 LED G24D-2 TIF (19.55 MB)
Product image: white background, upright, OSRAM logo
DULUX LED D/E HF 7W TIF (22.69 MB)

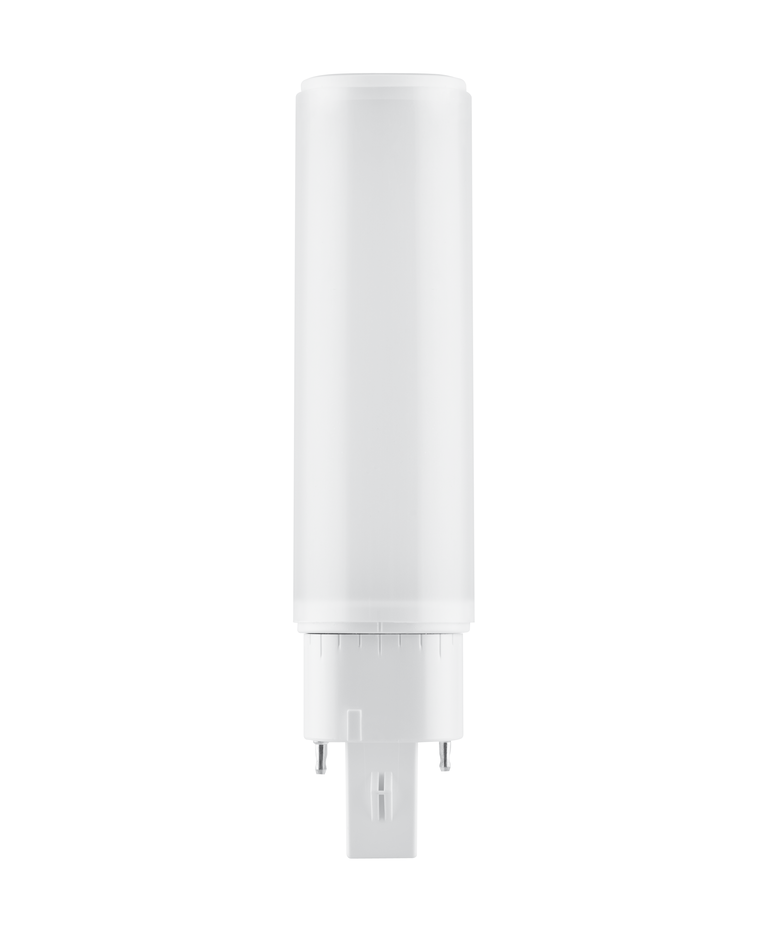

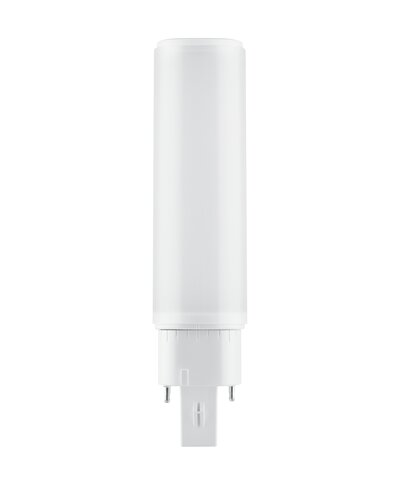

Product image: white background, upright
Dulux D 18 LED G24D-2 TIF (22.68 MB)
Product line drawing with letters
Dulux D 18 LED G24D-2 SVG (21.17 KB)
Product line drawing with numbers
Dulux D 18 LED G24D-2 SVG (26.69 KB)
Product line drawing, front, no dimensions
Dulux D 18 LED G24D-2 SVG (18.35 KB)

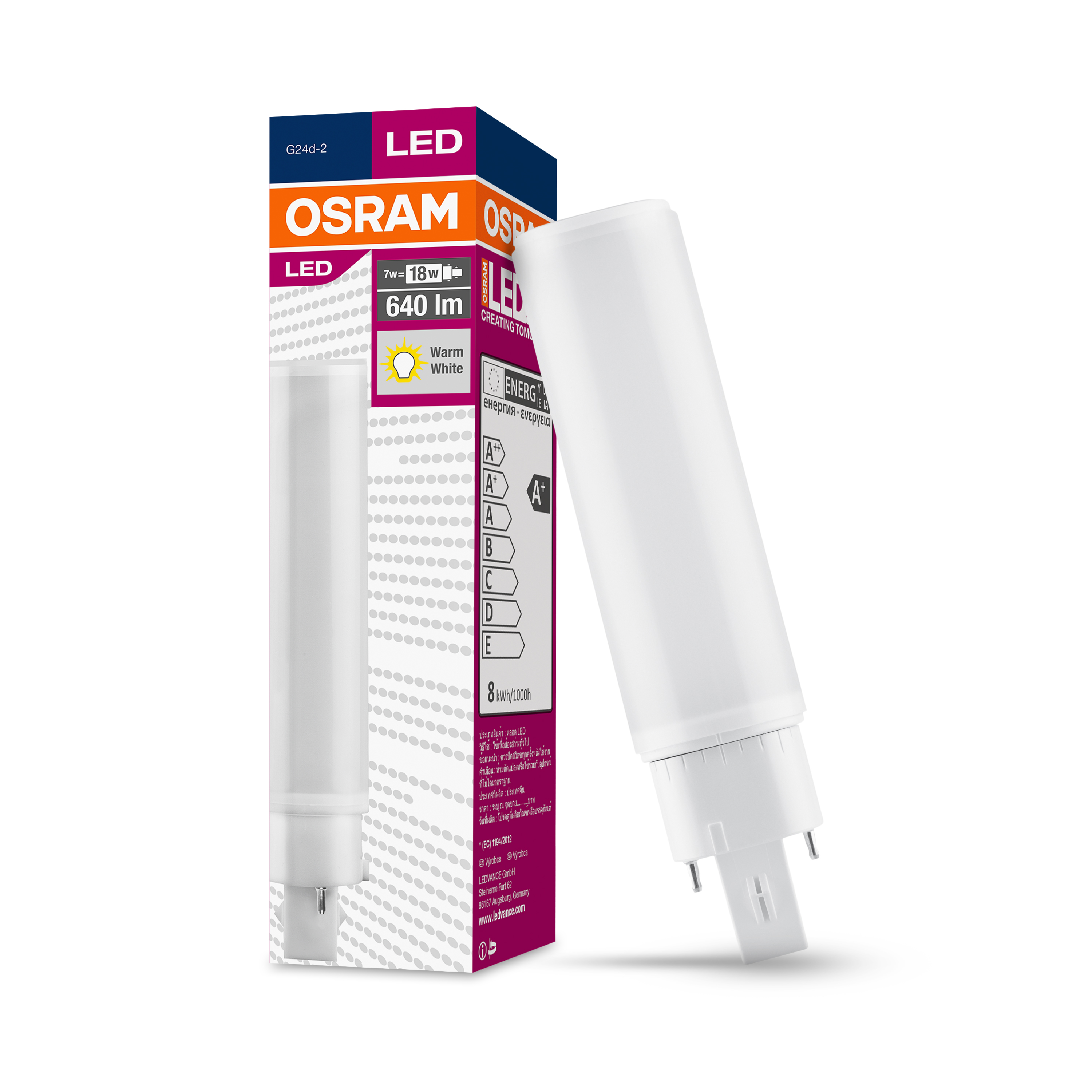

Combo Shot = Product Beauty Shot + Packaging Image
DULUX D18LED 7W-830230 VEMG24D-210X1 JPG (1.54 MB)
Packaging image, frontal
LED DULUX D 7W 830 EM G24d-2 MiCh Front TIF (4.52 MB)
Packaging image, spacial
LED DULUX D 7W 830 EM G24d-2 MiCh Side TIF (7.31 MB)
IES file (IES)
IES File AC23450 DULUX D18 LED 7W830 230V EM _AC MAIN IES (46.09 KB)
LDT file (Eulumdat)
LDT File AC23450 DULUX D18 LED 7W830 230V EM _AC MAIN LDT (30.02 KB)
Light distribution curve type polar
DULUX D18 LED 7W830 23 0V EM AC MAIN SVG (547.9 KB)
Spectral power distribution
Everlight 2835KK3C 300 0K SVG (11.26 KB)
EAN SEG number STK number EFO number ELDAS number
4058075024915 8292611 4730776 3740443 941259000
