Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
DULUX LED D13 EM & AC MAINS 6W 830 G24D-1	G24d-1	6 W	220…240 V	30000 h	600 lm	13 W	120 °	No
DULUX LED D13 EM & AC MAINS 6W 840 G24D-1	G24d-1	6 W	220…240 V	30000 h	660 lm	13 W	120 °	No
DULUX LED D18 EM & AC MAINS 7W 830 G24D-2	G24d-2	7 W	220…240 V	30000 h	700 lm	18 W	120 °	No
DULUX LED D18 EM & AC MAINS 7W 840 G24D-2	G24d-2	7 W	220…240 V	30000 h	770 lm	18 W	120 °	No
DULUX LED D26 EM & AC MAINS 9W 830 G24D-3	G24d-3	9 W	220…240 V	30000 h	990 lm	26 W	120 °	No
DULUX LED D26 EM & AC MAINS 9W 840 G24D-3	G24d-3	9 W	220…240 V	30000 h	1100 lm	26 W	120 °	No
DULUX D LED EM & AC Mains 18 7 W/3000 K G24d-2	G24d-2	7 W	220…240 V	30000 h	640 lm	18 W	120 °	No
DULUX D LED EM & AC Mains 18 7 W/4000 K G24d-2	G24d-2	7 W	220…240 V	30000 h	700 lm	18 W	120 °	No
DULUX D LED EM 18 7 W/6500 K G24d-2	G24d-2	7 W	220…240 V	30000 h	700 lm	18 W	120 °	No
DULUX D LED EM & AC Mains 26 10 W/3000 K G24d-3	G24d-3	10 W	220…240 V	30000 h	920 lm	26 W	120 °	No
DULUX D LED EM & AC Mains 26 10 W/4000 K G24d-3	G24d-3	10 W	220…240 V	30000 h	1000 lm	26 W	120 °	No

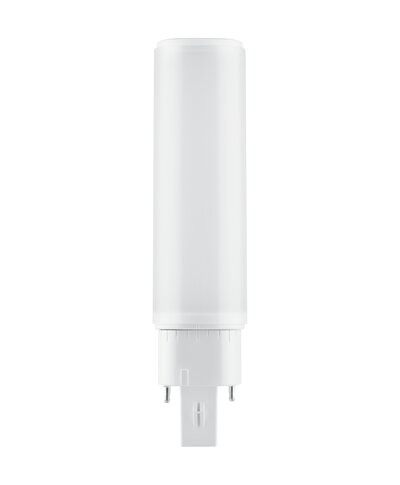

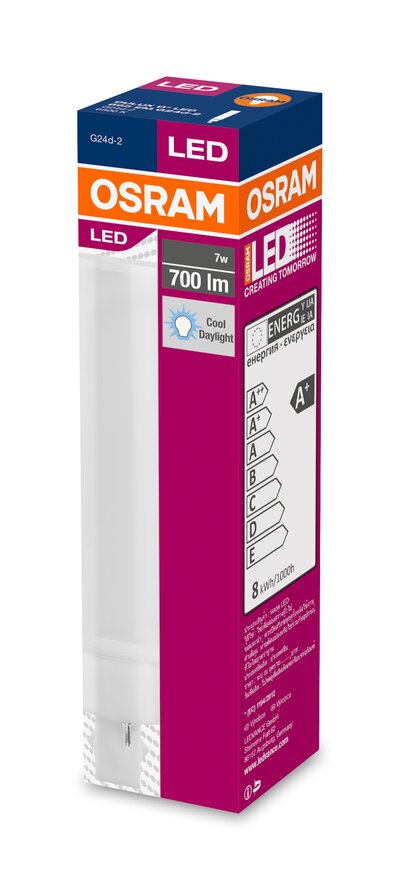

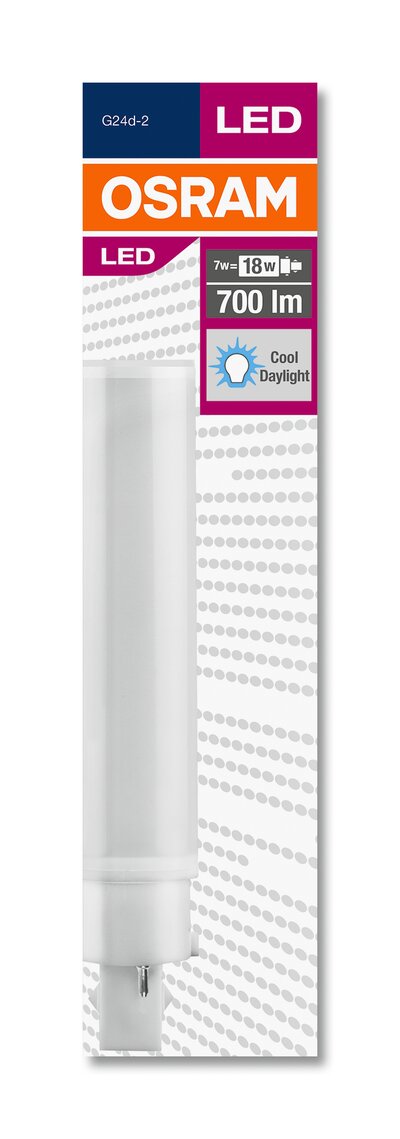

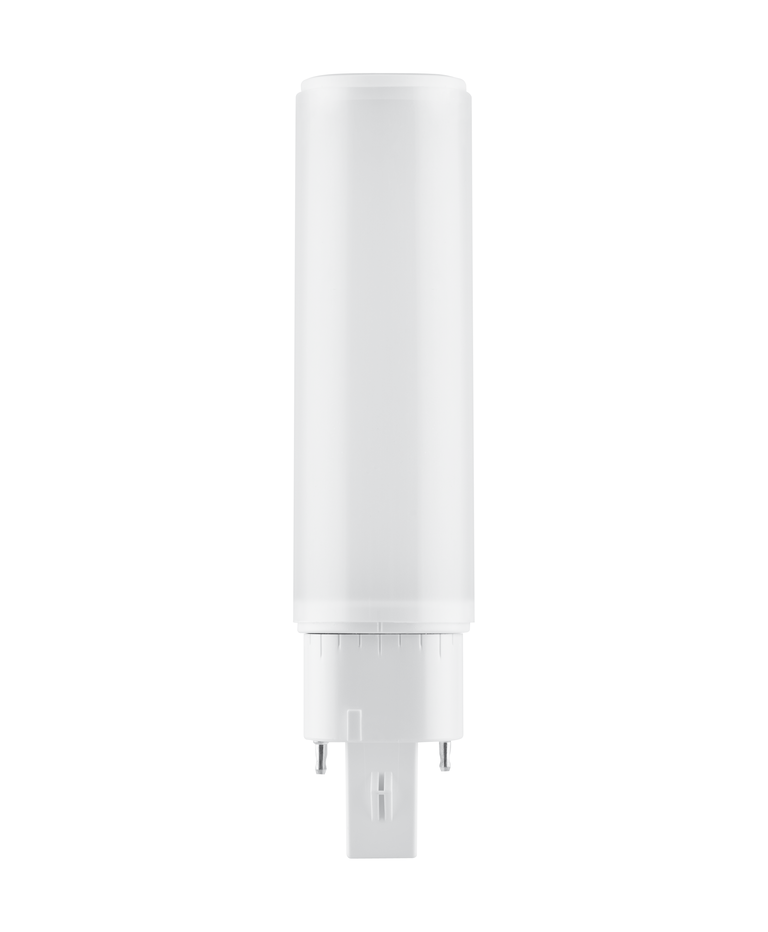

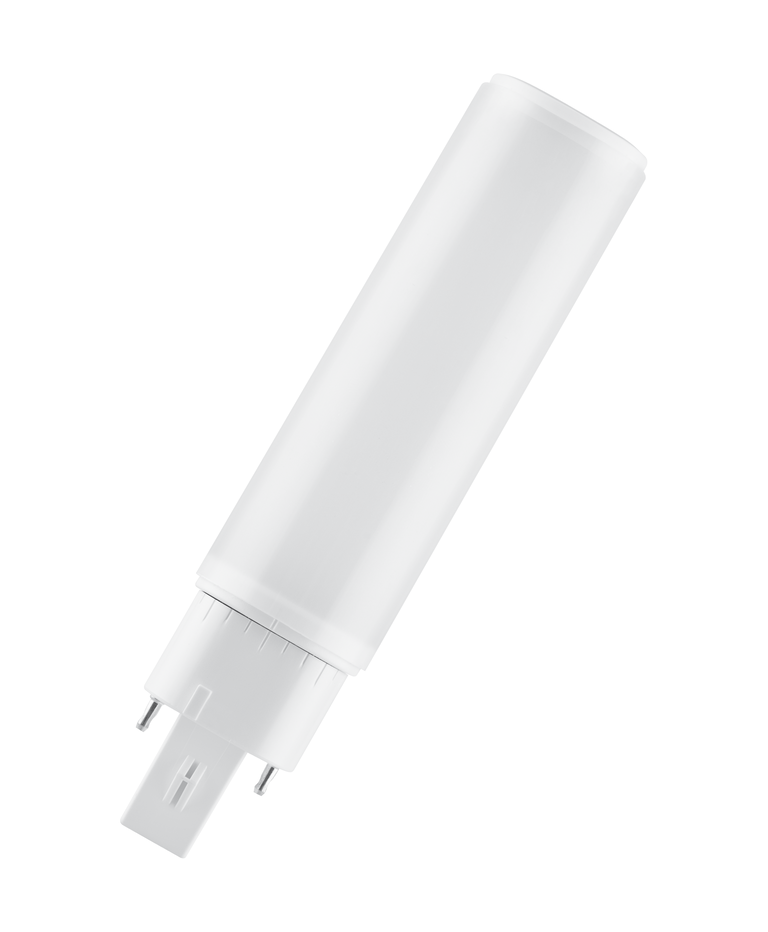

DULUX D LED EM 18 7 W/6500 K G24d-2

Nominal wattage	7 W
Construction wattage	7.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	18 W
Nominal current	30 mA
Type of current	AC
Operating frequency	50…60 Hz
Mains frequency	50…60 Hz
Power factor λ	> 0.90

Luminous flux	700 lm
Luminous efficacy	100 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool Daylight
Color temperature	6500 K
Color rendering index Ra	> 83
Light color	865
Standard deviation of color matching	≤6 sdcm

Overall length	147.50 mm
Length with base excl. base pins/connection	125,70 mm
Diameter	34.50 mm
Maximum diameter	33 mm
Product weight	65.00 g

Ambient temperature range	-20…+40 °C
Maximum temperature at tc test point	80 °C

Number of switching cycles	200000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Dimmable

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Order reference

DULUX D LED 7W/

Temperature range at storage

-20…+80 °C

Light source cap-type (or other electric interface)	G24d-2
Length	147.50 mm
Height	34.50 mm
Width	34.50 mm

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
Rotatable base around its longitudinal axis (± 90°)
Lifetime up to 30,000 h
Single-ended two-pin plug-in G24d base
Type of protection: IP20
Mercury-free lamps

Safety advice

Not suitable for tandem operation.
The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
All electrical connections must be made by a qualified person.
Not suitable for emergency lighting.
Do not touch the lamp if broken.
Must not be used if outer bulb is defective.
