LINEAR INDIVILED CORNER CONNECTOR

Choose your product version

Coming soon

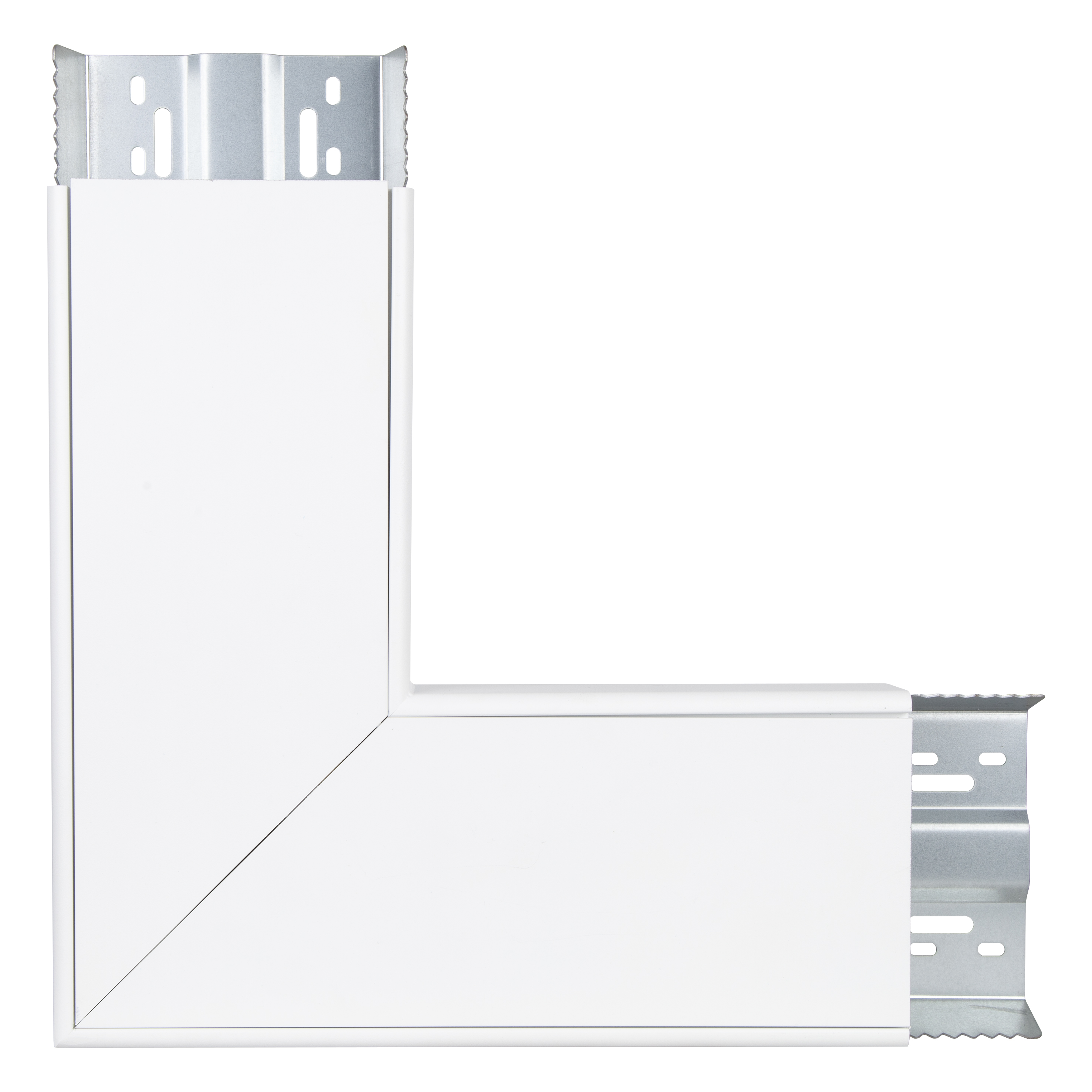

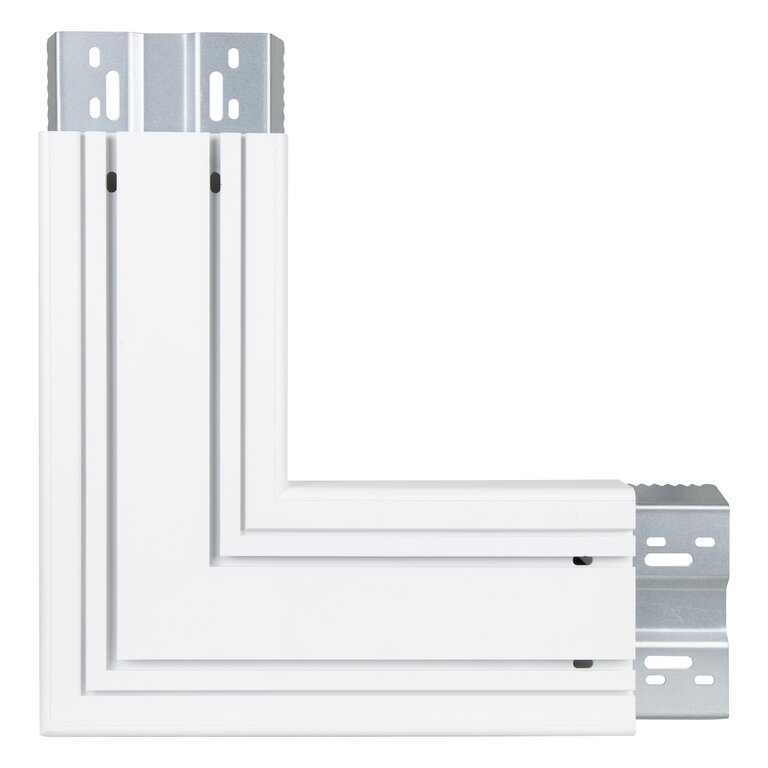

LN INV CORNER CONNECTOR WT

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation

PRODUCT DETAILS

Dimensions & Weight

Length 350 mm
Height 43 mm
Width 350 mm
Product weight 1120.00 g

Materials & Colors

Product color White
Body material Steel

Application & Mounting

Replaceable light source No

Certificates & Standards

Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No

Additional product data

Product remark Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick connection of luminaires for light line installations
  • Very solid connector for long operation
Product features

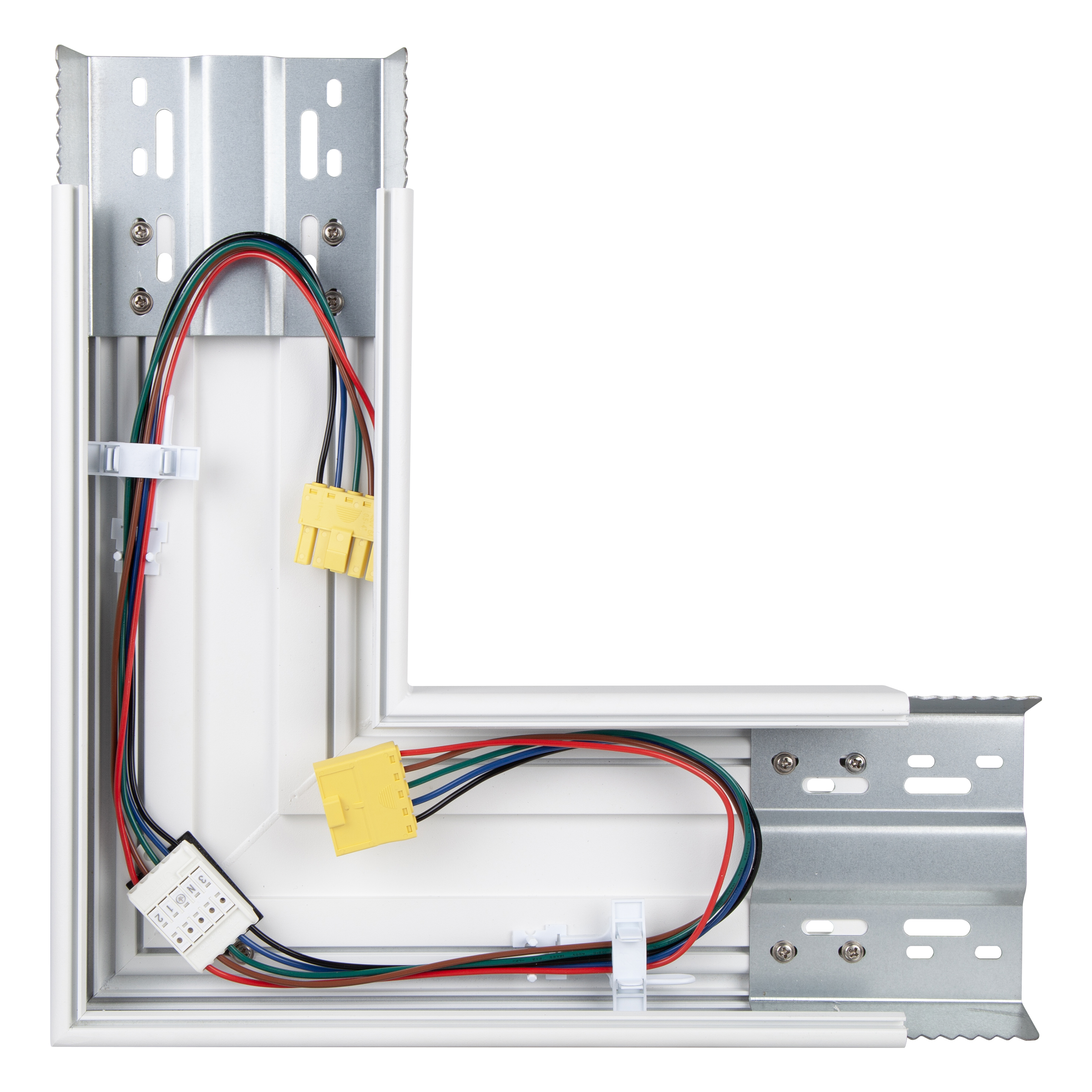

  • Mechanical and electric connector (profile, 5 x 2.5 mm² internal wiring and terminal plug, male-female AC plug)
  • Connector made of aluminum, white powder-coated

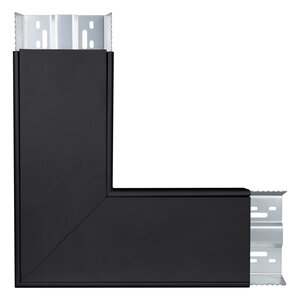

  • Available in black and white color

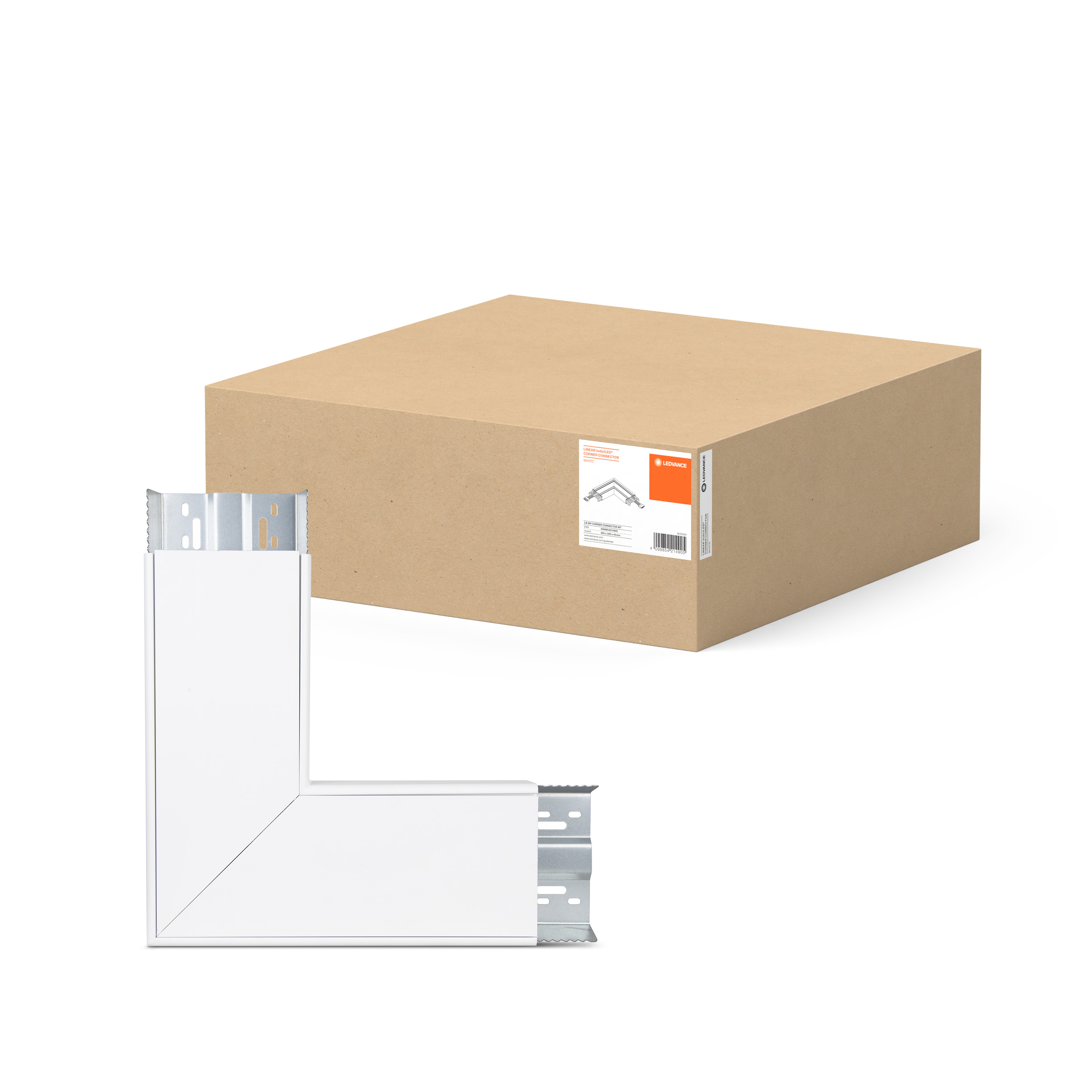

Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854308093 Folding box
1
404 mm x 404 mm x 142 mm 3710.00 g 23.18 dm³
4099854308109 Shipping box
4
597 mm x 427 mm x 434 mm 7420.00 g 110.63 dm³
EAN SEG number STK number EFO number ELDAS number
4099854308093 7028049 4152160 3352277 941904080
