VIALOX NAV-T

Choose your product version

70 W E27

100 W E40

100 W E27

150 W E40

150 W E40

250 W E40

250 W E40

400 W E40

400 W E40

1000 W 230 V E40

1000 W E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time
NAV-T 70 W E27 E27 70 W 24000 h
NAV-T 100 W E40 E40 100 W 100 V 9000 lm Yes
NAV-T 100 W E27 E27 100 W Yes
NAV-T 150 W E40 E40 150 W 100 V 28000 h 15000 lm
NAV-T 150 W E40 E40 150 W 100 V 28000 h 15000 lm Yes
NAV-T 250 W E40 E40 250 W 100 V 28000 h 28000 lm Yes
NAV-T 250 W E40 E40 250 W 100 V 28000 h 28000 lm Yes
NAV-T 400 W E40 E40 400 W 100 V 28000 h 48000 lm Yes
NAV-T 400 W E40 E40 400 W 100 V 28000 h 48000 lm Yes
NAV-T 1000 W 230 V E40 E40 1000 W 230 V 20000 h
NAV-T 1000 W E40 E40 1000 W 110 V 20000 h 130000 lm Yes


NAV-T 1000 W 230 V E40

Product benefits
  • High luminous efficacy
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 1000 W
Nominal voltage 230 V
Nominal current 10.6 A

Photometrical data

Color rendering index Ra ≤25
Light color 2

Dimensions & Weight

Overall length 358.00 mm
Length 358.00 mm
Diameter 66.00 mm
Product weight 315.00 g

Additional product data

Base (standard designation) E40
Mercury content 20.0 mg
Product remark ErP compliant according to EU Regulation 245/2009

Country-specific categorizations

Order reference NAV-T 1000W 230

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High luminous efficacy
Areas of application
  • Streets
  • Outdoor lighting
  • Industrial installations
  • Suitable for use in open and enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • Service lifetime: 3 years (at approx. 11 h/day)
Safety advice
  • Disconnect mains before installation.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321890986 Sleeve
1		 91 mm x 91 mm x 420 mm 394.00 g 3.48 dm³
4008321890993 Shipping box
12		 372 mm x 296 mm x 454 mm 5697.00 g 49.99 dm³

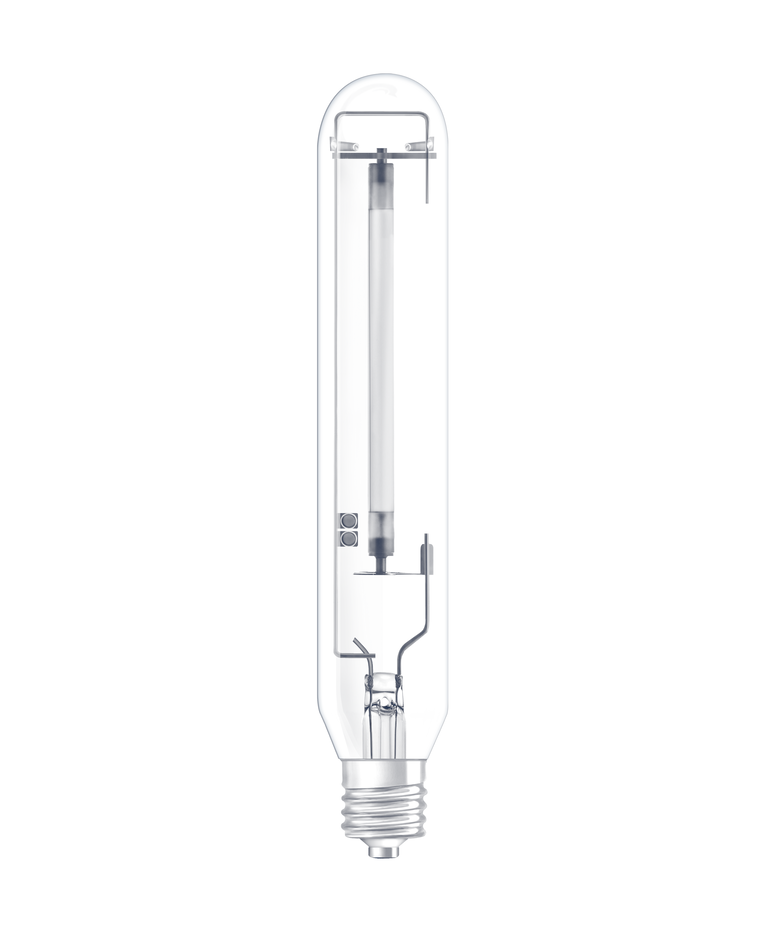

Product image: white background, upright
NAV-T 1000W E40 TIF (1.36 MB)
Product line drawing, front, no dimensions
325780_NAV-T E40 / NAV -T 4Y E40 / NAV-T SUPE R 4Y E40 / PLANTASTAR E40 SVG (6.26 KB)
