LED VALUE HIGH WATTAGE

Choose your product version

40 18 W/2700 K B22d

40 18 W/2700 K E27

40 18 W/6500 K B22d

40 18 W/6500 K E27

60 27 W/2700 K B22d

60 27 W/2700 K E27

60 27 W/6500 K B22d

60 27 W/6500 K E27

80 36 W/2700 K E27

80 36 W/6500 K E27

100 45 W/2700 K E27

100 45 W/6500 K E27

100 45 W/6500 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE HW 40 18 W/2700 K B22d B22d 18 W 100…240 V 20000 h 2070 lm 40 W 180 ° No
LED VALUE HW 40 18 W/2700 K E27 E27 18 W 100…240 V 20000 h 2070 lm 40 W 180 ° No
LED VALUE HW 40 18 W/6500 K B22d B22d 18 W 100…240 V 20000 h 2070 lm 40 W 180 ° No
LED VALUE HW 40 18 W/6500 K E27 E27 18 W 100…240 V 20000 h 2070 lm 40 W 180 ° No
LED VALUE HW 60 27 W/2700 K B22d B22d 27 W 100…240 V 20000 h 3105 lm 60 W 180 ° No
LED VALUE HW 60 27 W/2700 K E27 E27 27 W 100…240 V 20000 h 3105 lm 60 W 180 ° No
LED VALUE HW 60 27 W/6500 K B22d B22d 27 W 100…240 V 20000 h 3105 lm 60 W 180 ° No
LED VALUE HW 60 27 W/6500 K E27 E27 27 W 100…240 V 20000 h 3105 lm 60 W 180 ° No
LED VALUE HW 80 36 W/2700 K E27 E27 36 W 100…240 V 20000 h 4140 lm 80 W 180 ° No
LED VALUE HW 80 36 W/6500 K E27 E27 36 W 100…240 V 20000 h 4140 lm 80 W 180 ° No
LED VALUE HW 100 45 W/2700 K E27 E27 45 W 100…240 V 20000 h 5175 lm 100 W 180 ° No
LED VALUE HW 100 45 W/6500 K E27 E27 45 W 100…240 V 20000 h 5175 lm 100 W 180 ° No
LED VALUE HW 100 45 W/6500 K E40 E40 45 W 100…240 V 20000 h 5175 lm 100 W 180 ° No


LED VALUE HW 40 18 W/2700 K B22d

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 220 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.90

Photometrical data

Luminous flux 2070 lm
Nominal useful luminous flux 90° 2070 lm
Luminous efficacy 115 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 135.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 68.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 78 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, EMC, ROHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV HW 18W/827 1

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 135.00 mm
Height 80.00 mm
Width 80.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 50 % compared to conventional compact fluorescent lamps
  • Accessory cover works as a reflector and increase the illuminance up to 100 %
  • Wide beam angle: 200°
  • Long lifetime of up to 20,000 h
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
Areas of application
  • Suitable for indoor applications.
  • Warehouses
  • Workshops
  • Stadiums
  • Car parks
Product features
  • Luminous efficacy: up to 100 lm/W
  • Color rendering index Ra: ≥ 80
  • Power factor: 0.9
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854173769 Folding box
1		 82 mm x 82 mm x 142 mm 107.00 g 0.95 dm³
4099854173776 Shipping box
10		 432 mm x 187 mm x 174 mm 1405.00 g 14.06 dm³

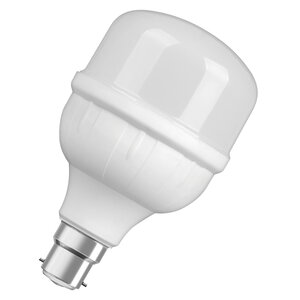

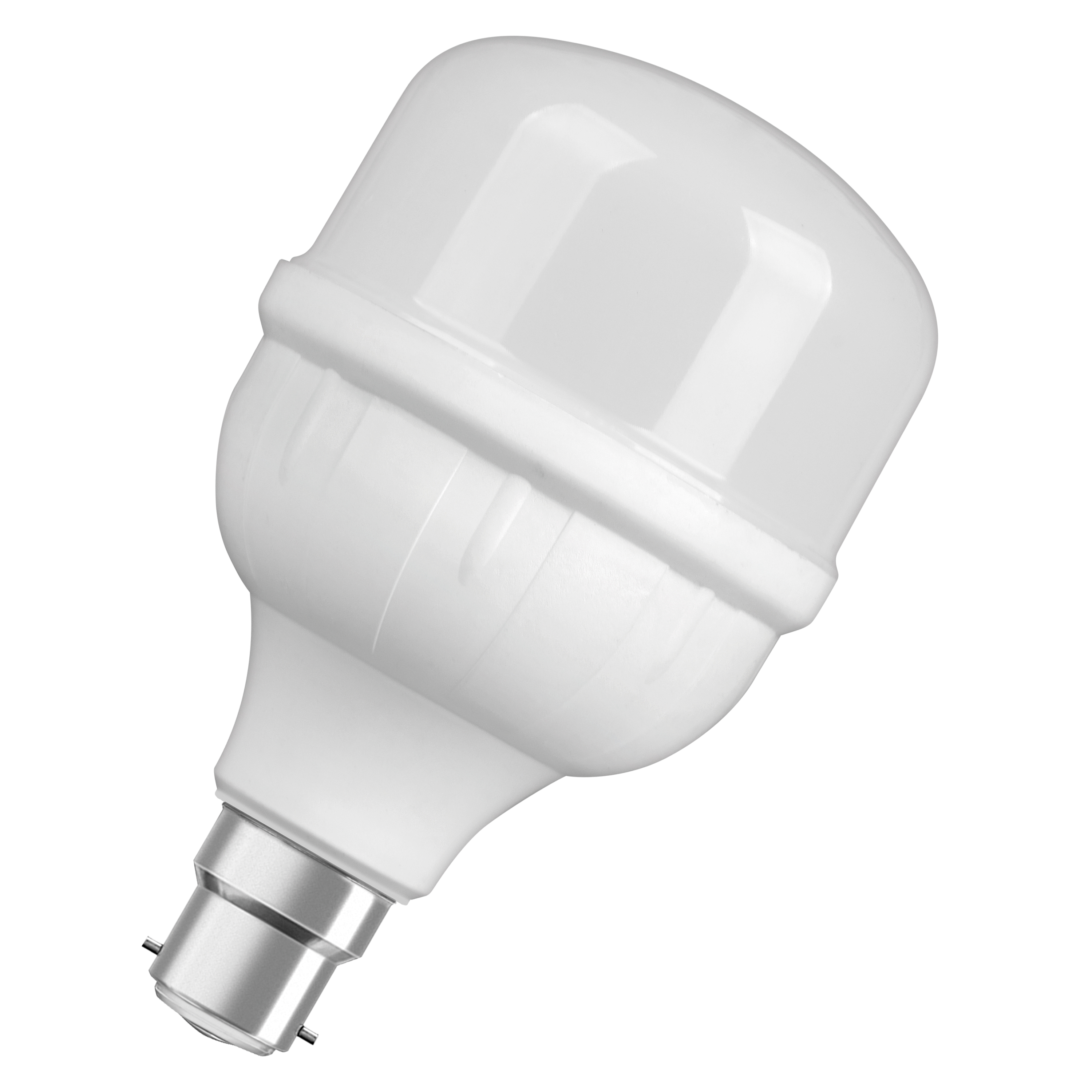

Product image: white background, diagonal
LV HW 18W B22D JPG (1.64 MB)

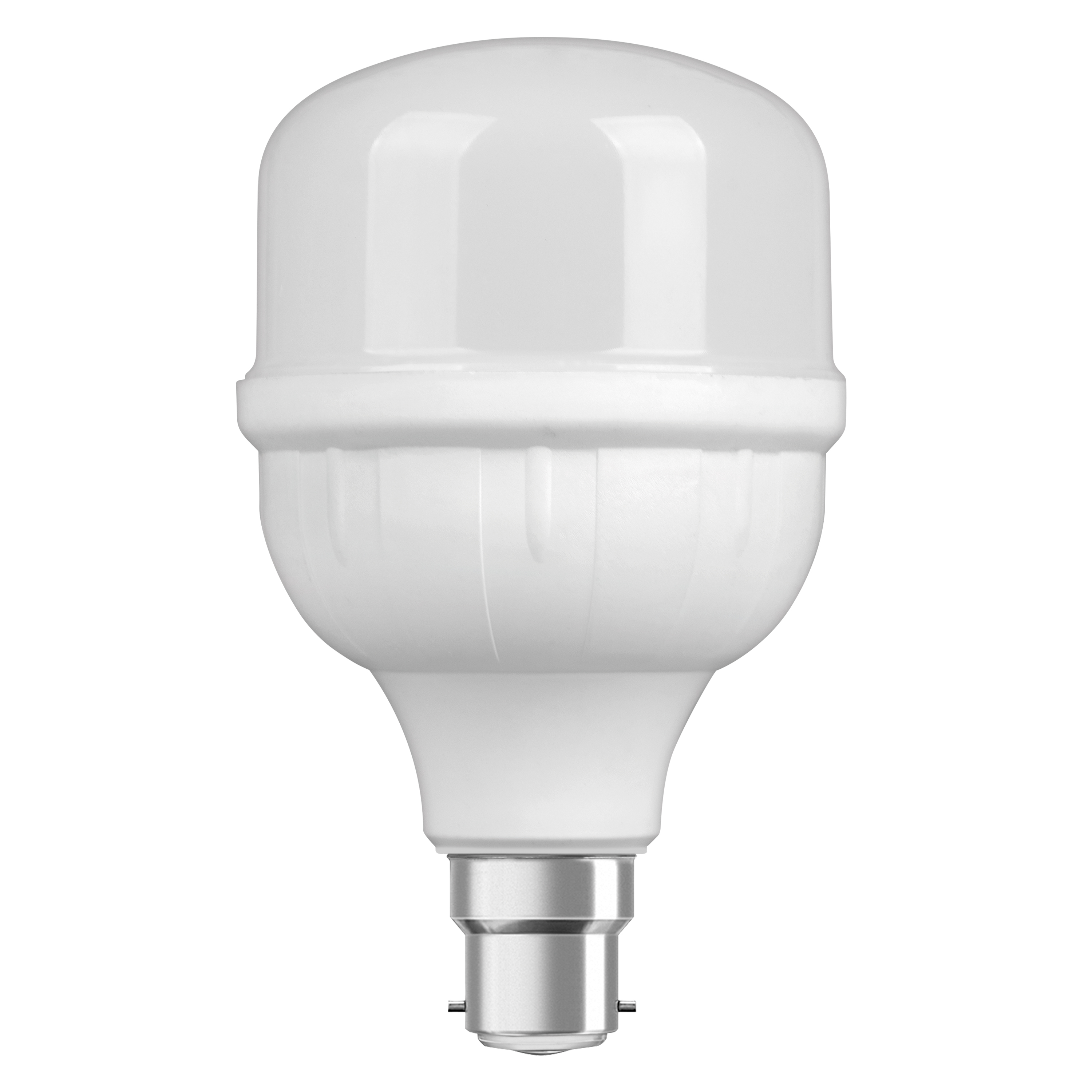

Product image: white background, upright
