HALOLINE SUPERSTAR

Choose your product version

48 W 230 V R7S

80 W 230 V R7S

120 W 230 V R7S

120 W 240 V R7S

160 W 230 V R7S

230 W 230 V R7S

400 W 240 V R7S

400 W 230 V R7S

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
HALOLINE SST 48 W 230 V R7S R7s 48 W 230 V 2000 h 700 lm 60 W Yes
HALOLINE SST 80 W 230 V R7S R7s 80 W 230 V 2000 h 1385 lm Yes
HALOLINE SST 120 W 230 V R7S R7s 120 W 230 V 2000 h 2245 lm Yes
HALOLINE SST 120 W 240 V R7S R7s 120 W 240 V 2000 h 2245 lm Yes
HALOLINE SST 160 W 230 V R7S R7s 160 W 230 V 2000 h 3100 lm 200 W Yes
HALOLINE SST 230 W 230 V R7S R7s 230 W 230 V 2000 h 5000 lm 300 W Yes
HALOLINE SST 400 W 240 V R7S R7s 400 W 240 V 2000 h 8750 lm 500 W Yes
HALOLINE SST 400 W 230 V R7S R7s 400 W 230 V 2000 h 8750 lm 500 W Yes


HALOLINE SST 400 W 240 V R7S

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 400 W
Construction wattage 400.00 W
Nominal voltage 240 V
Claimed equiv. conventional lamp power 500 W
Power factor λ 1.00

Photometrical data

Luminous flux 8750 lm
Luminous efficacy 21 lm/W
Lumen main.fact.at end of nom.life time 0.80
Light color (designation) Warm White
Color temperature 2900 K
Color rendering index Ra 100
Light color 1029
UV protection No

Light technical data

Warm-up time (60 %) 0.00 s
Starting time 0.0 s

Dimensions & Weight

Overall length 114.20 mm
Diameter 12.00 mm
Maximum diameter 12 mm
Product weight 11.00 g

Lifespan

Number of switching cycles 50000

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Tube
Product remark Fuse protection with indicated values recommended acc. to IEC60357, EN60357, For outdoor applications and operation in damp locations special approved fixtures are required

Capabilities

Dimmable Yes
Burning position Any

Certificates & Standards

Energy efficiency class G
Energy consumption 400.00 kWh/1000h

Country-specific categorizations

ILCOS HDG-400-230-R7s-114,2
Order reference 64702 ECO SST

Energy labelling regulation data acc EU 2019/2015

Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Length 119.60 mm
Height 12.00 mm
Width 12.00 mm
Chromaticity coordinate x 0.444
Chromaticity coordinate y 0.406
Beam angle correspondence SPHERE_360
EPREL ID 1337648
Model number A539477,A539477,A539477,A539477

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Brilliant accent lighting
  • Direct replacement for standard tubular halogen lamps
  • Significantly lower CO2 emissions compared to standard version
  • Lower thermal output (compared with the standard reference product)
  • No transformer required
Areas of application
  • Entrance lighting
  • Pathway lighting
  • Garden lighting
  • Traffic areas
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
  • Ideal for emphasizing and accentuating the structure of a room
Product features
  • Average life: 2,000 h
  • Dimmable
  • Color rendering index Ra: 100
  • Base: R7s
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321227980 Blister
1		 140 mm x 13 mm x 96 mm 17.72 g 0.17 dm³
4058075667037 Bundle
2		 28 mm x 140 mm x 120 mm 40.00 g 0.47 dm³
4008321227997 Shipping box
10		 149 mm x 124 mm x 145 mm 273.25 g 2.68 dm³
Product image: white background, diagonal
324591_HALOLINE FOR MA INS VOLTAGE TIF (4.41 MB)
Product line drawing with letters
620_HALOLINE SVG (7.18 KB)
Product line drawing, front, no dimensions
325064_HALOLINE FOR PO WER SUPPLY VOLTAGE SVG (4.5 KB)

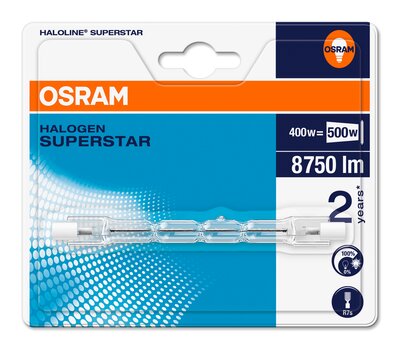

Packaging image, frontal
U3 HALOLINE SST 64702 400W 240V R7s MiG Fron t TIF (9.02 MB)
Energy label
EL-4008321227980-A5394 77 PDF (21.34 KB)
Logos and pictos
G left SVG (2.41 KB)
Logos and pictos
G left BW SVG (1.07 KB)
Logos and pictos
G right SVG (2.4 KB)
Logos and pictos
G right BW SVG (1.06 KB)
Spectral power distribution
349635_HAL_ohne_UVS PNG (104.62 KB)
EAN EFO number
4008321227980 3710117
