OSRAM DULUX S/E

Choose your product version

7 W 4000 K 2G7

11 W 4000 K 2G7

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal lamp life time Nominal luminous flux Dimmable
DULUX S/E 7 W 4000 K 2G7 2G7 7 W 10000 h 400 lm No
DULUX S/E 11 W 4000 K 2G7 2G7 11 W 10000 h 900 lm Yes


DULUX S/E 7 W 4000 K 2G7

Product benefits
  • Extremly economical
  • Good quality of light
  • Improved maintenance
  • Low power consumption (7 W, 9 W, 11 W)
  • Long service life
  • Extremely low profile
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.10 W

Photometrical data

Luminous flux 400 lm
Luminous flux at 25 °C 400 lm
Light color (designation) LUMILUX Cool White
Color temperature 4000 K
Color rendering index Ra 80…90
Light color 840
Rated LLMF at 2,000 h 0.90
Rated LLMF at 4,000 h 0.81
Rated LLMF at 6,000 h 0.80
Rated LLMF at 8,000 h 0.76
Rated lamp efficacy (standard co.) 56 lm/W

Dimensions & Weight

Overall length 112.00 mm
Diameter 12.00 mm
Maximum diameter 11 mm
Product weight 20.5 g

Temperatures & operating conditions

Rated ambient temp.w.max.luminous 25.0 °C

Lifespan

Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.99
Rated lamp survival factor at 6,000 h 0.95
Rated lamp survival factor at 8,000 h 0.81
Operation mode LLMF/LSF HF

Additional product data

Base (standard designation) 2G7
Mercury content 1.3 mg

Capabilities

Suitable for indoor Yes
Dimmable No

Certificates & Standards

Energy efficiency class A
Energy consumption 7.81 kWh/1000h

Country-specific categorizations

ILCOS FSD-7/40/1B-E-2G7
Order reference DULUX S/E 7W/84

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) 2G7
Length 114.00 mm
Height 12.00 mm
Width 12.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Extremly economical
  • Good quality of light
  • Improved maintenance
  • Low power consumption (7 W, 9 W, 11 W)
  • Long service life
  • Extremely low profile
Areas of application
  • Offices, public buildings
  • Shops
  • Supermarkets and department stores
  • Hotels, restaurants
Product features
  • Short and compact pin-base lamps with single-turn tubes
  • Single-ended four-pin plug-in 2G7 base
  • Operates on battery, solar and AC power with suitable electronic control gear
  • Not dimmable
Equipment / Accessories
  • Suitable for operation on electronic control gear
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321583574 Folding box
1		 38 mm x 22 mm x 127 mm 27.50 g 0.11 dm³
4008321583581 Shipping box
50		 240 mm x 205 mm x 149 mm 1568.00 g 7.33 dm³

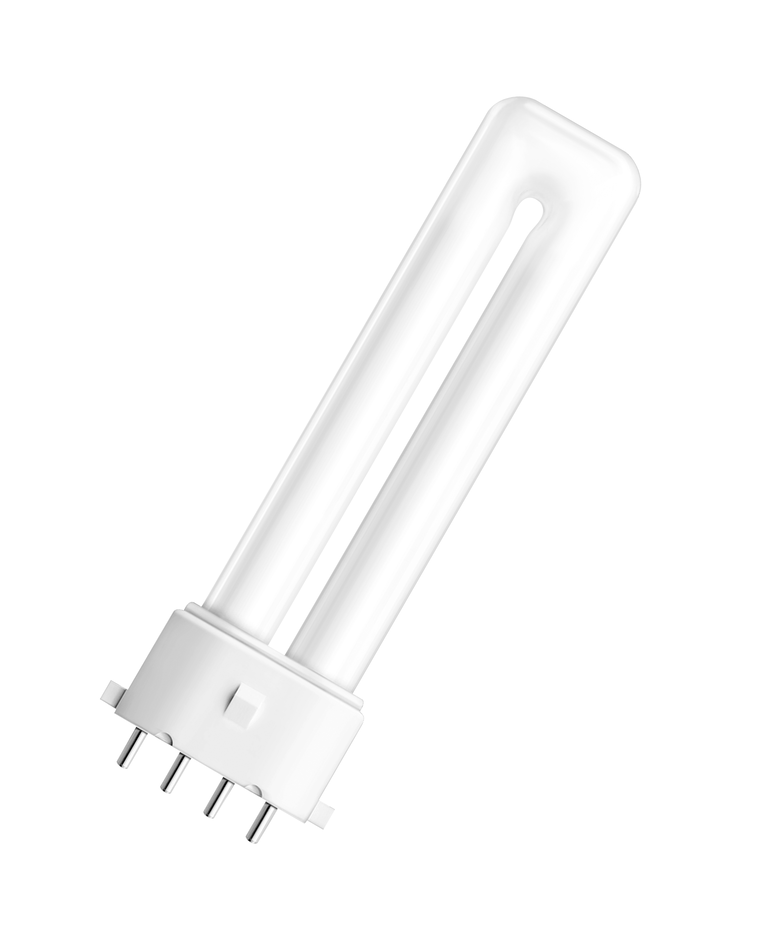

Product image: white background, diagonal
DULUX S/E 7W 2G7 TIF (9.14 MB)

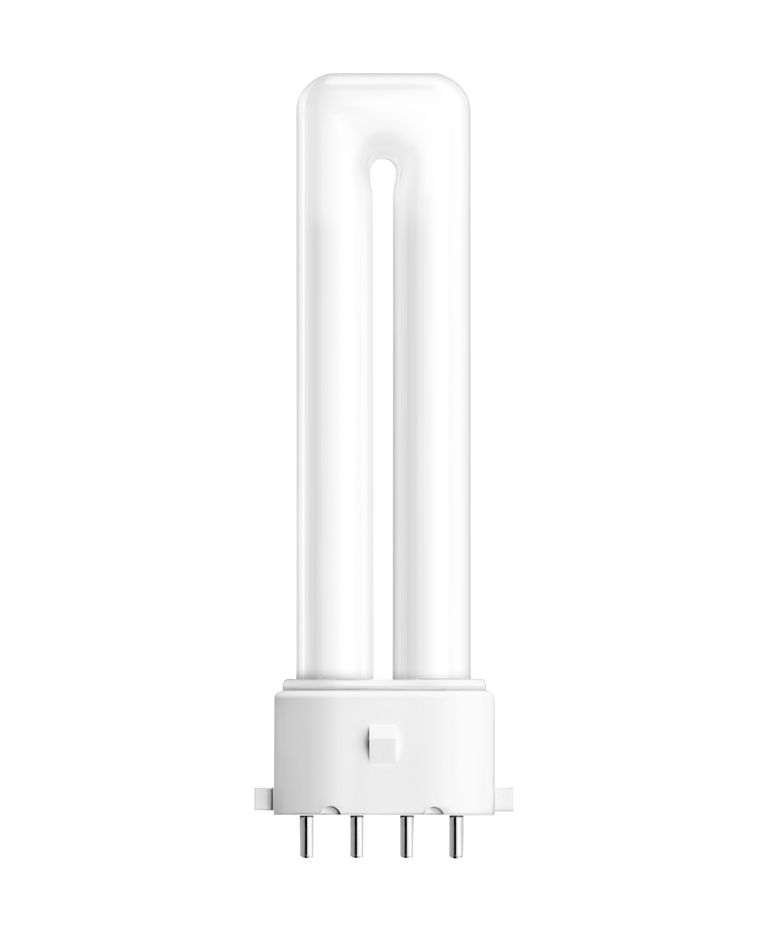

Product image: white background, upright
DLULUX S/E 7W 2G7 TIF (6 MB)
Product line drawing with letters
319567_OSRAM DULUX S/E SVG (6.35 KB)
Product line drawing, front, no dimensions
39479_DULUX S/E SVG (4.76 KB)
