Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

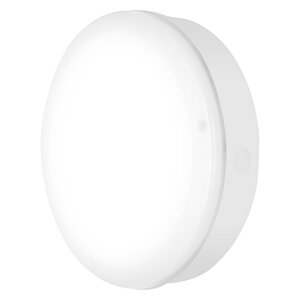

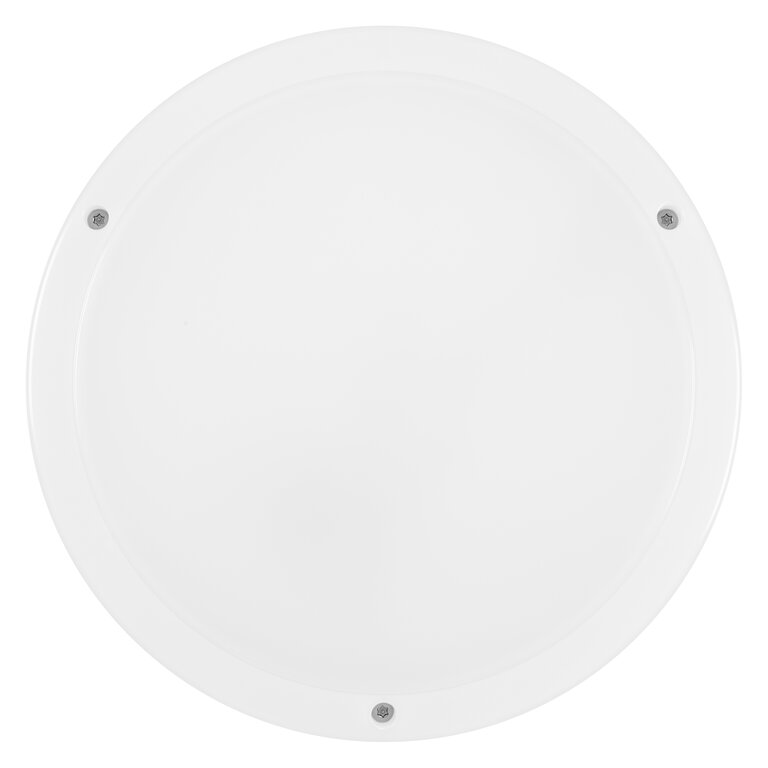

| SF BLKH 250 10W/3000K WT IP65 | 8.20 W | 100000 | 120 ° | 800 lm | No |
| SF BLKH 250 10W/4000K WT IP65 | 8.20 W | 100000 | 120 ° | 800 lm | No |

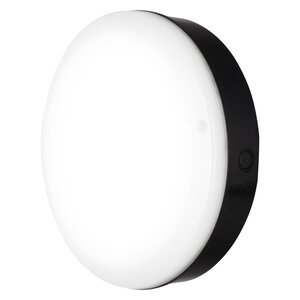

| SF BLKH 250 10W/4000K BK IP65 | 8.20 W | 100000 | 120 ° | 800 lm | No |
| SF BLKH 250 10W/3000K BK IP65 | 10 W | 100000 | 120 ° | 800 lm | No |
| Nominal wattage | 8.20 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 350 mA |
| Inrush current | 4,52 A |
| Inrush current time Th50 | 50 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 94 |
| Max. number of luminaires per miniature circuit breaker C10 | 75 |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Power factor λ | ≥0.5 |
| Total harmonic distortion | < 10 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
| Luminous flux | 800 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Diameter | 250.00 mm |
| Height | 70.00 mm |
| Product weight | 520.00 g |
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

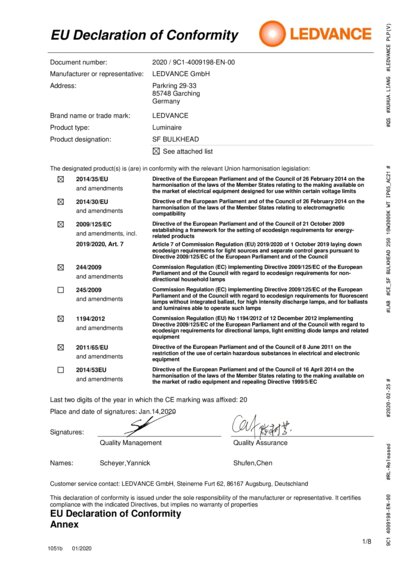

| Standards | CE, CB |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Number of illuminants | - |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075374843 | Folding box 1 |
74 mm x 272 mm x 262 mm | 602.00 g | 5.27 dm³ |
| 4058075374850 | Shipping box 8 |
550 mm x 285 mm x 315 mm | 5398.00 g | 49.38 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
SF BLKH RING 250 WT | 4058075399334 |
|
SF BLKH EYELID 250 WT | 4058075375482 |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075374843 | 7704486 | 4125349 | 3000481 | 941000950 |
