Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| BLKH RD SN 250 P 10W ML 83040 BK | 10 W / 8.5 W / 7 W / 6 W | 100000 | 120 ° | 1220 lm / 1070 lm / 860 lm / 710 lm | No |
| BLKH RD SN 250 P 10W ML 83040 WT | 10 W / 8.5 W / 7 W / 6 W | 100000 | 120 ° | 1220 lm / 1070 lm / 860 lm / 710 lm | No |
| BLKH RD SN 300 P 18 W ML 83040 BK | 17.5 W / 15,5 W / 13 W / 11 W | 100000 | 120 ° | 2280 lm / 1980 lm / 1690 lm / 1390 lm | No |
| BLKH RD SN 300 P 18 W ML 83040 WT | 17.5 W / 15,5 W / 13 W / 11 W | 100000 | 120 ° | 2280 lm / 1980 lm / 1690 lm / 1390 lm | No |
| Nominal wattage | 10 W / 8.5 W / 7 W / 6 W 1) |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 46…41…35…30 mA |
| Inrush current | 3.44 A |
| Inrush current time Th50 | 3.284 µs |

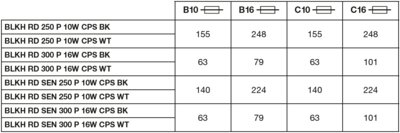

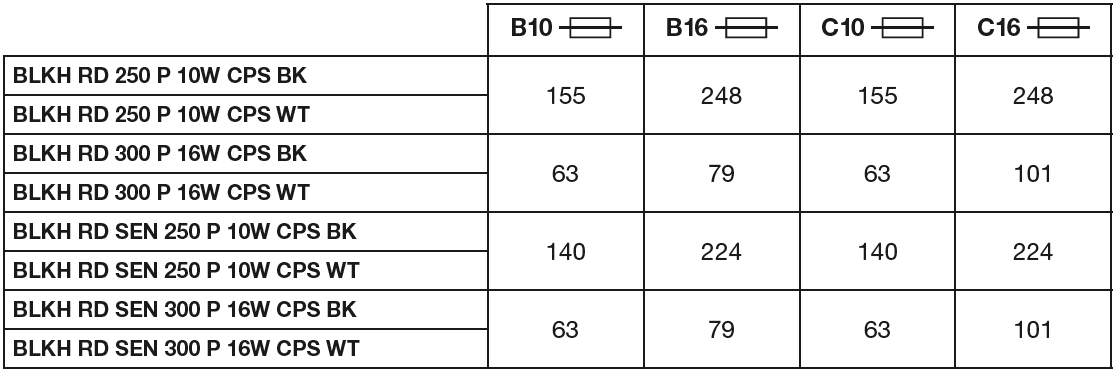

| Max. number of luminaires per miniature circuit breaker B16 | 224 |
| Max. number of luminaires per miniature circuit breaker C10 | 140 |
| Max. number of luminaires per miniature circuit breaker C16 | 224 |
| Power factor λ | > 0.70 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | Integrated LED driver |

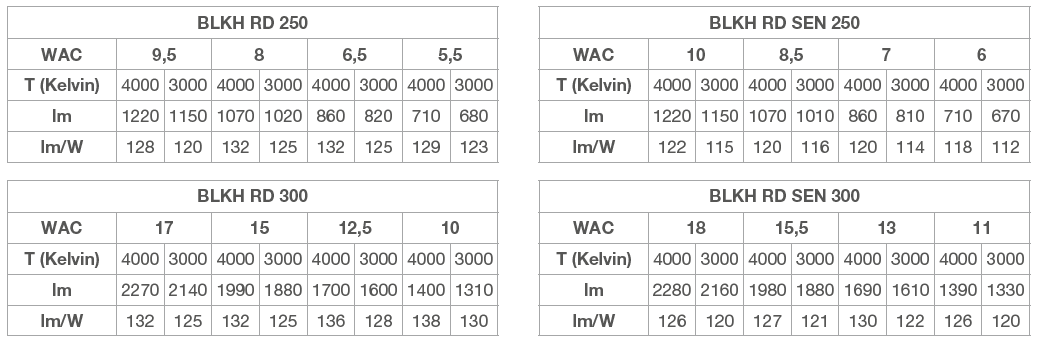

1) For possible options refer to lumen/power table image
| Luminous flux | 1220 lm / 1070 lm / 860 lm / 710 lm 1) |
| Luminous efficacy | 122 lm/W / 120 lm/W / 118 lm/W 1) |
| Color temperature | 3000 K / 4000 K |
| Light color (designation) | Warm White, Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 5 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
1) For possible options refer to lumen/power table image
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 10 W | 4000 K | 1220 lm | 122 lm/W |
| 10 W | 3000 K | 1150 lm | 115 lm/W |
| 8.5 W | 4000 K | 1070 lm | 120 lm/W |
| 8.5 W | 3000 K | 1010 lm | 116 lm/W |
| 7 W | 4000 K | 860 lm | 120 lm/W |
| 7 W | 3000 K | 810 lm | 114 lm/W |
| 6 W | 4000 K | 710 lm | 118 lm/W |
| 6 W | 3000 K | 670 lm | 112 lm/W |

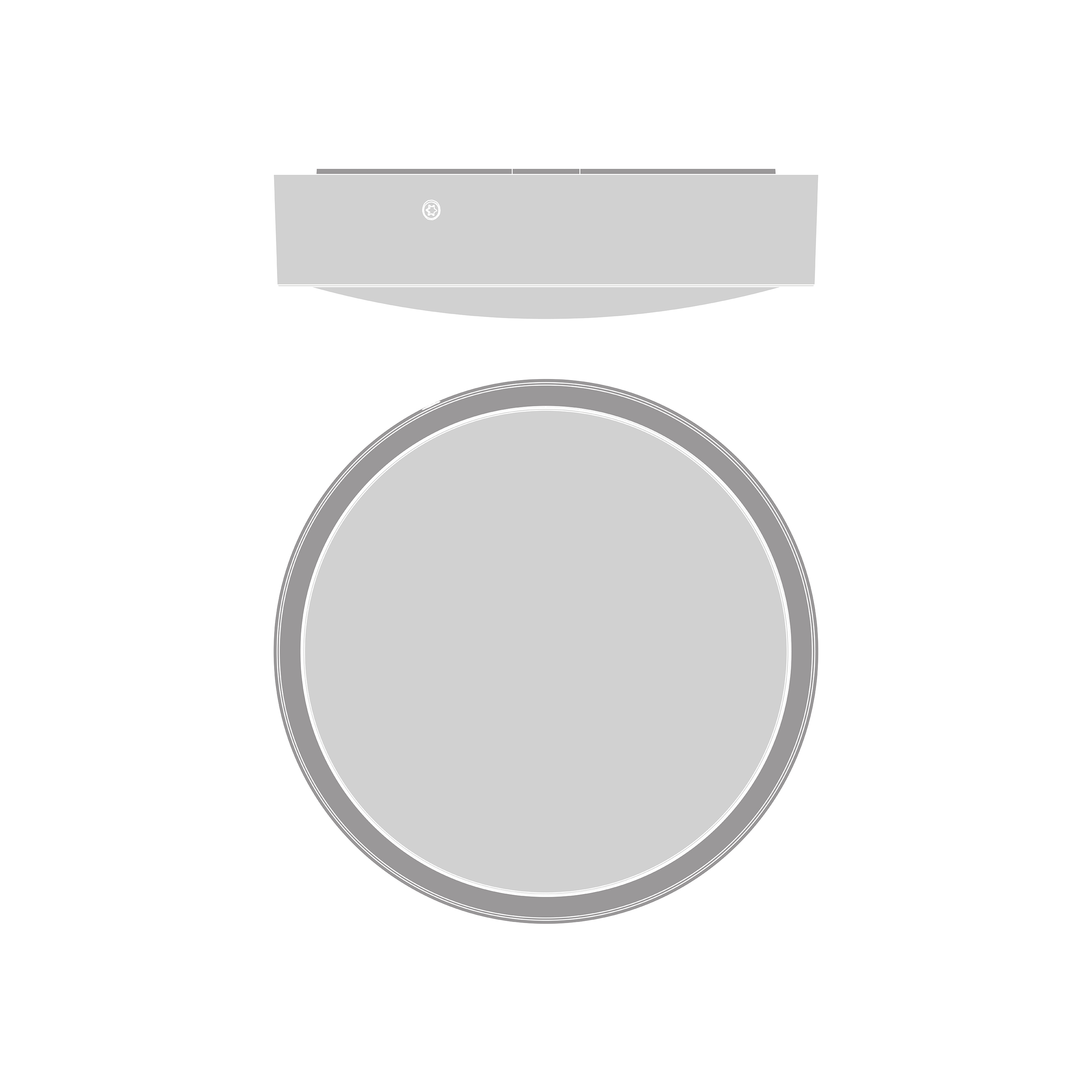

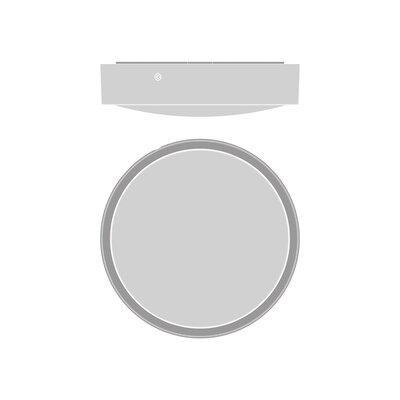

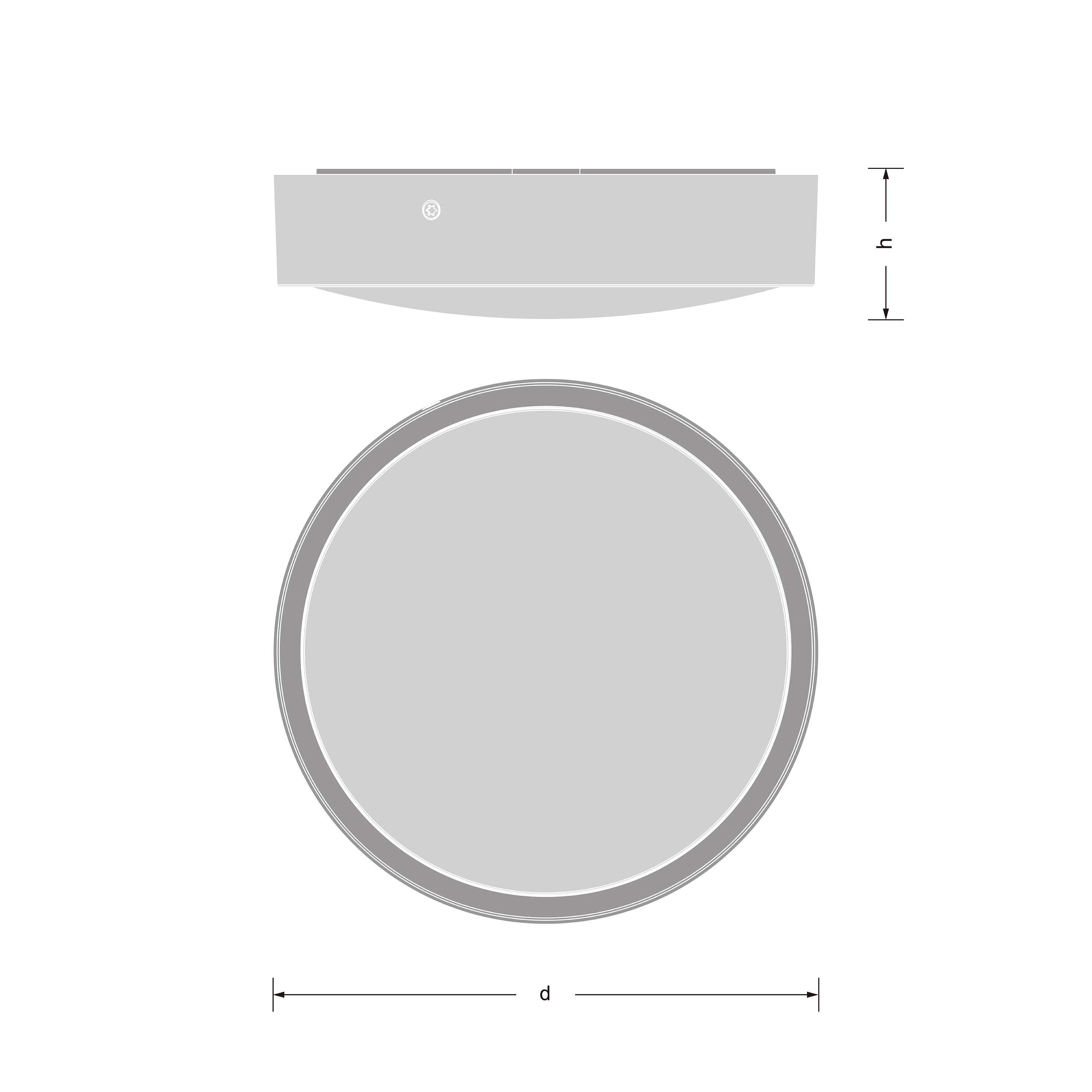

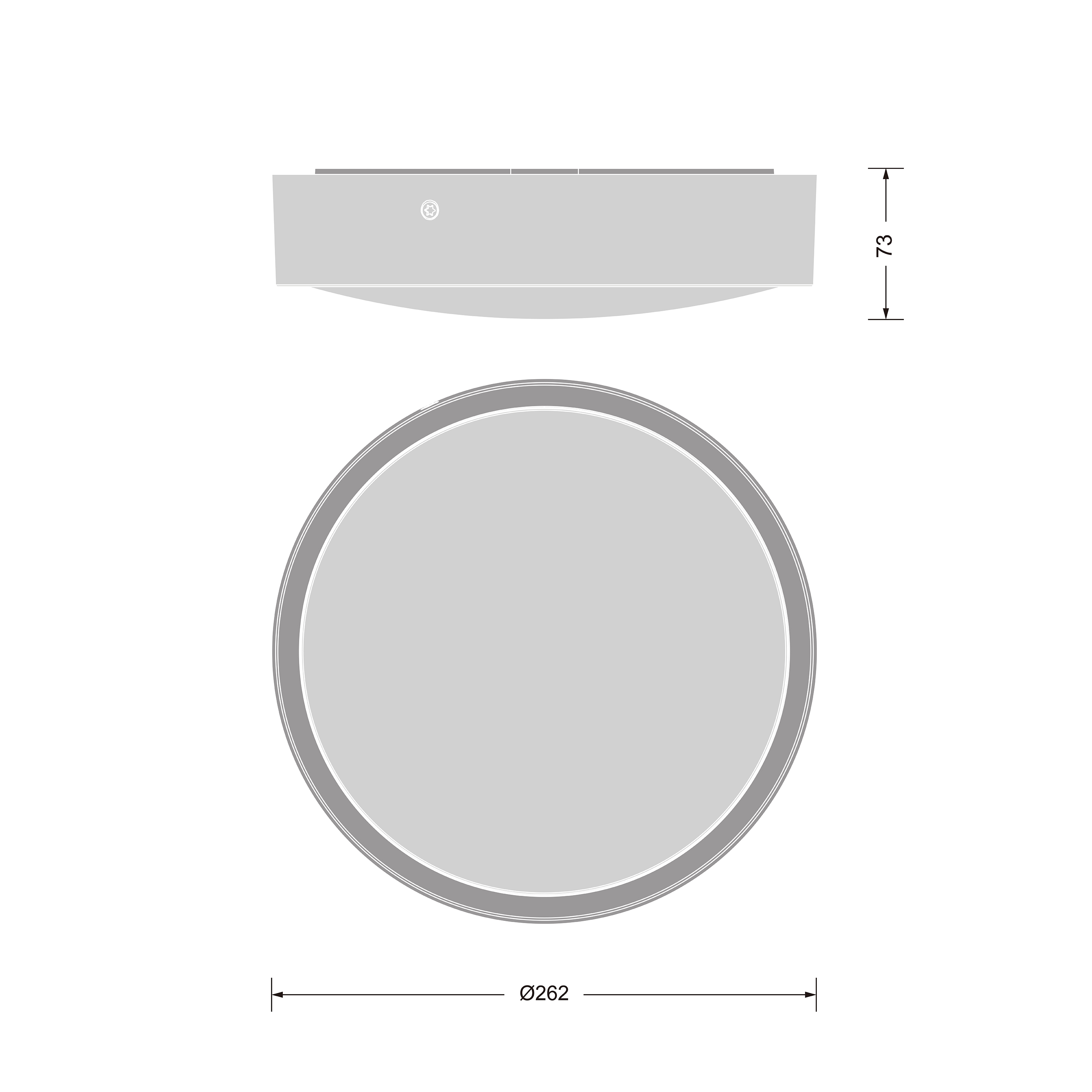

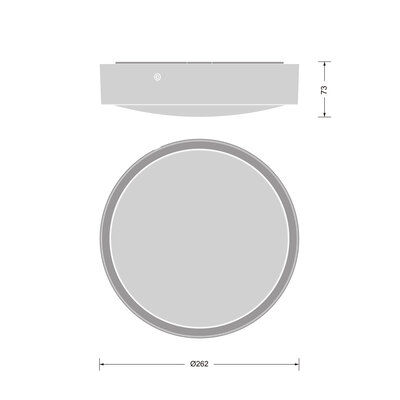

| Diameter | 262.00 mm |
| Height | 73.00 mm |
| Product weight | 720.00 g |
| Product color | Black |
| Housing color | Black |
| RAL Color (most similar) | RAL 9005 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK10 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | Yes |
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 55000 h 1) |
| Lifespan L90/B10 at 25 °C | 40000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 350…300…250…200 mA |
| ECG - Output ripple current | < 5 % |

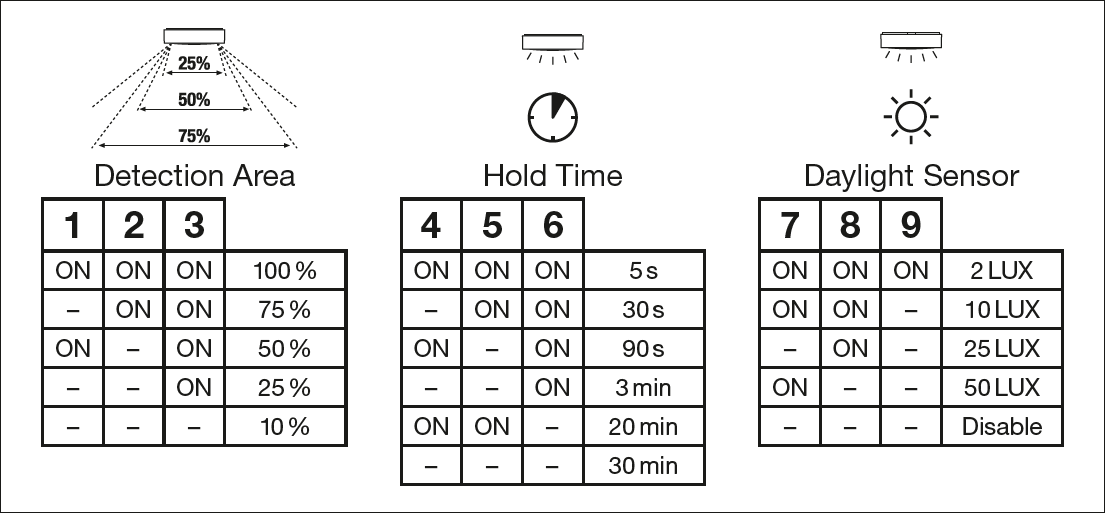

| Type of sensor | Motion, Light |
| Sensor technology | Microwave |
| Sensor detection angle | 150 ° |
| Sensor controlled switching time | 5 s…30 min |

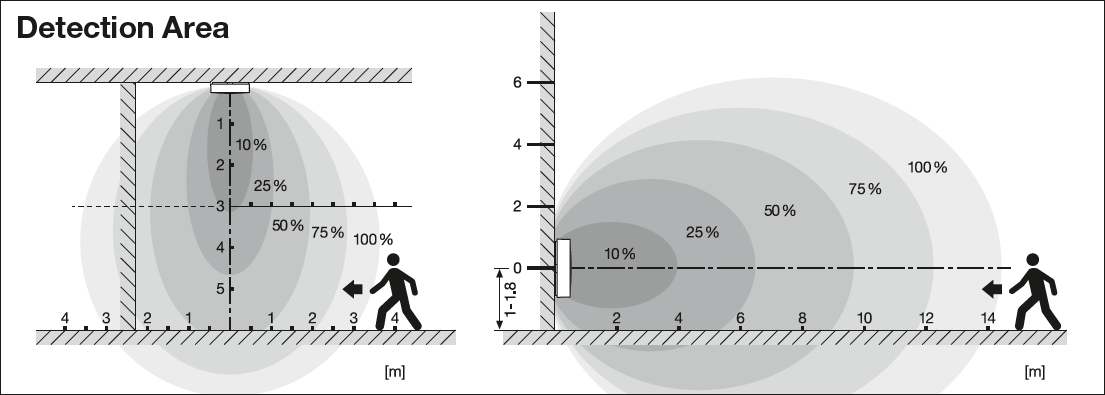

| Detection range of motion sensor | 3…8 m |
| Detection threshold of daylight sensor | 2…50 lx |
| Type of Emergency Lighting (EL) | EL certified driver (0Hz / DC operation) for central battery operation included |
| Type of emergency operation test | None |
| Wattage in emergency operation mode | 10 W |
| Luminous flux in emergency operation mode | 1220 lm |

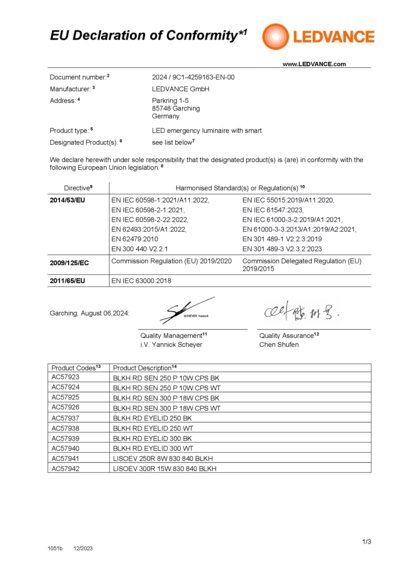

| Standards | CE, CB, UKCA, EAC, ENEC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |

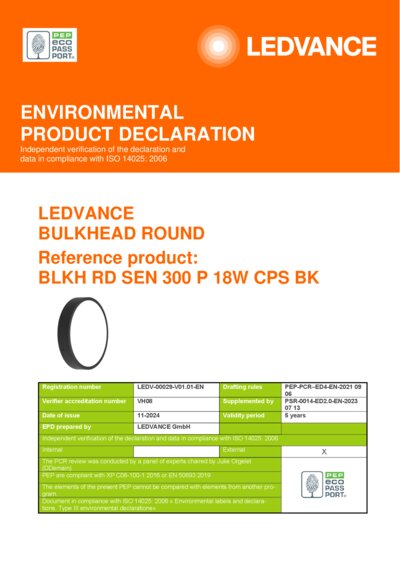

| EPD | LEDV-00029-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |

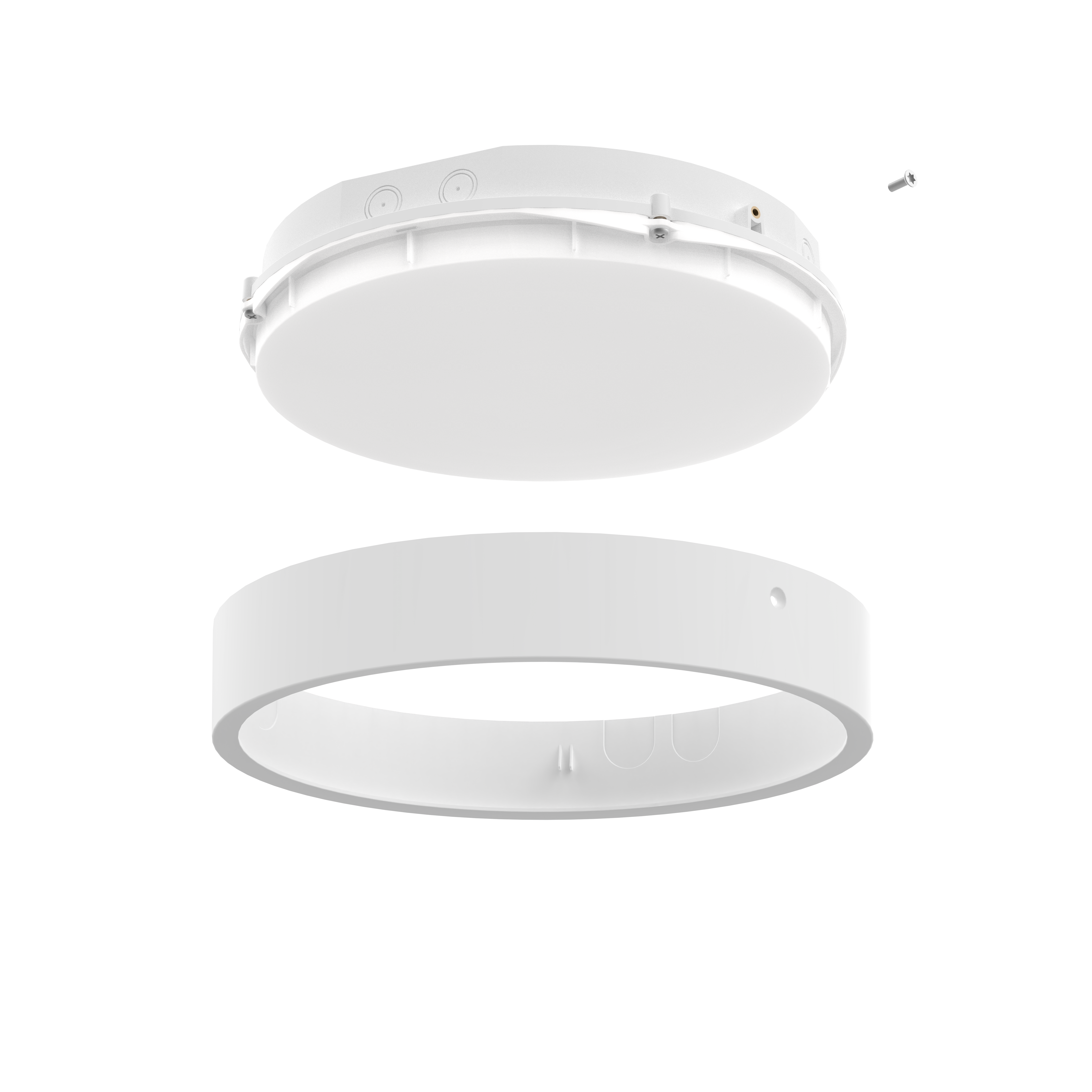

| Added function | EVERLOOP, MULTI SELECT |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

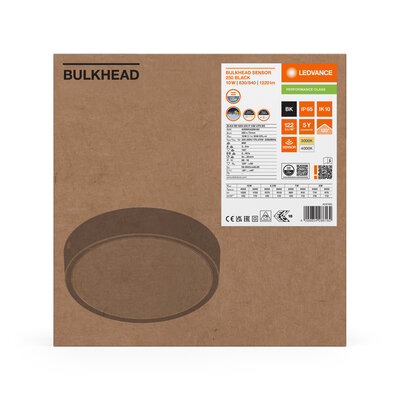

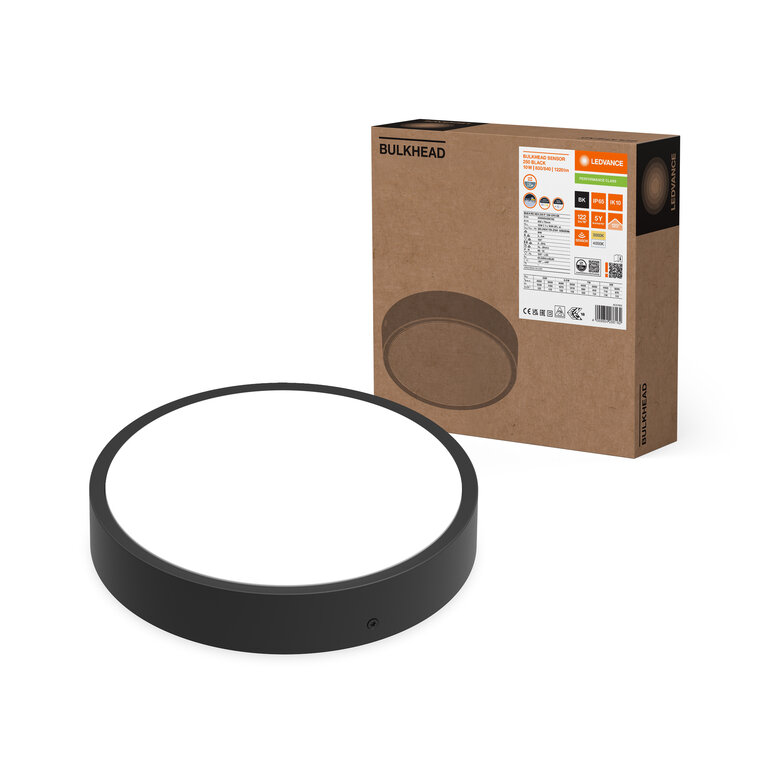

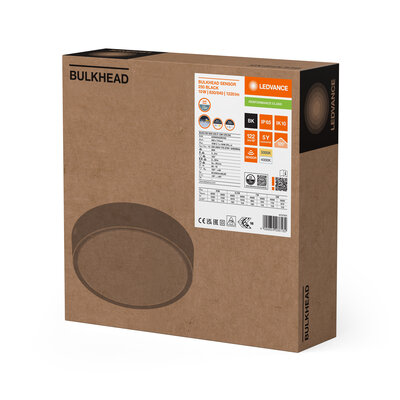

| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854286162 | Folding box 1 |
77 mm x 266 mm x 266 mm | 823.00 g | 5.45 dm³ |
| 4099854286179 | Shipping box 8 |
545 mm x 280 mm x 335 mm | 7134.00 g | 51.12 dm³ |

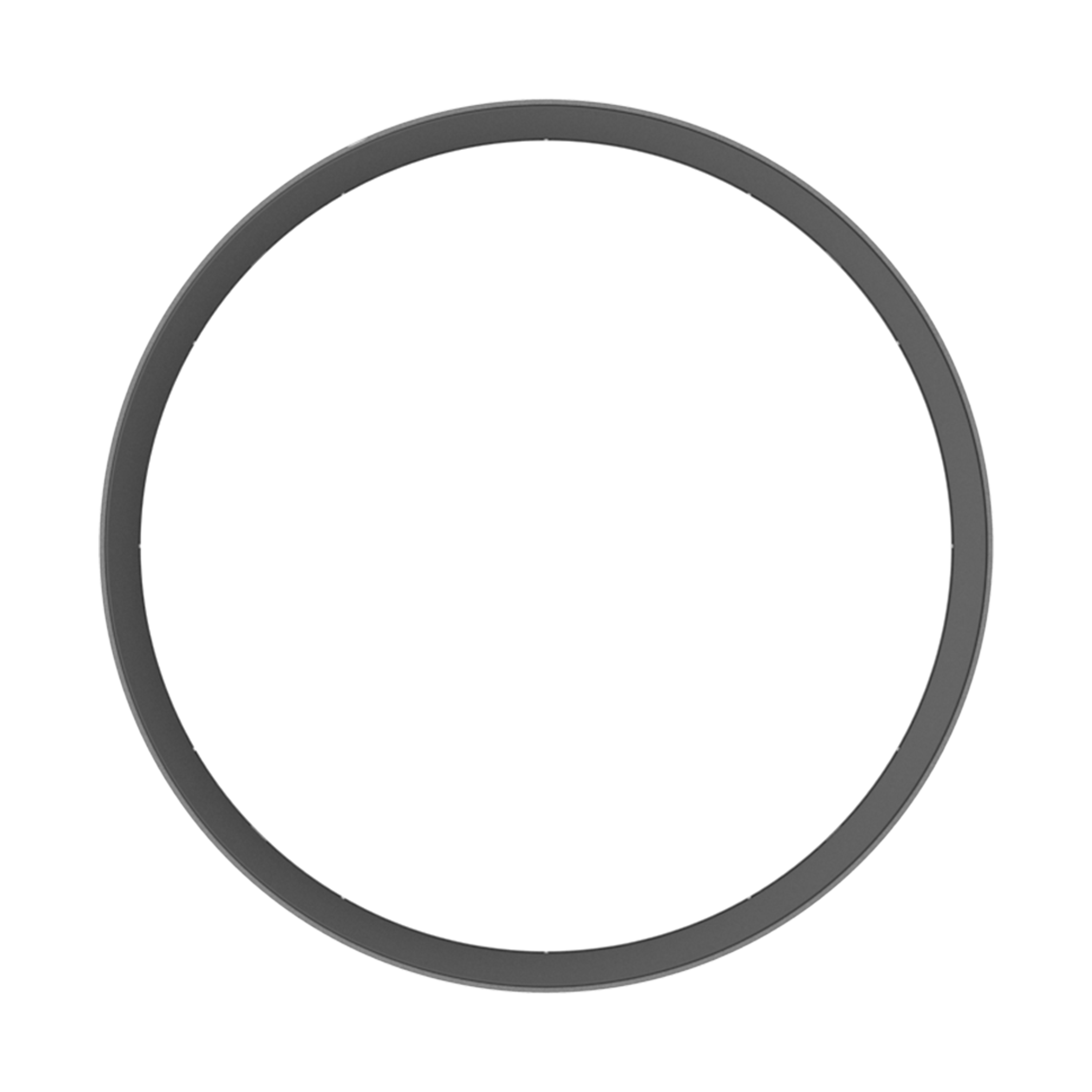

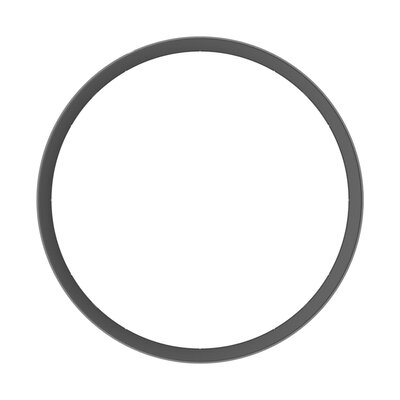

| Product image | Product name | EAN |
|---|---|---|
|
BLKH RD Eyelid 300 BK | 4099854286797 |
|
BLKH RD Eyelid 300 WT | 4099854286810 |
|
|
BLKH RD Eyelid 250 WT | 4099854286773 |
|
|
BLKH RD Eyelid 250 BK | 4099854286759 |
|
DR DS-P- 10/220-240/350 BLKH | 4099854286834 |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
|
DR DS-P- 10/220-240/350 BLKH | LEDVANCE | driver direct | 4099854286834 |
| EAN | SEG number | STK number | EFO number | ELDAS number | UK Org |
|---|---|---|---|---|---|
| 4099854286162 | 7706644 | 4152074 | 3378144 | 941603500 | 437368975 |
