Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Dimmable |
|---|---|---|---|

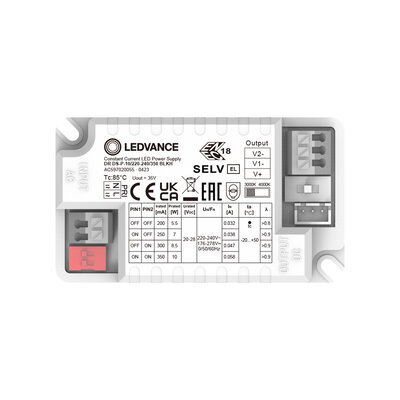

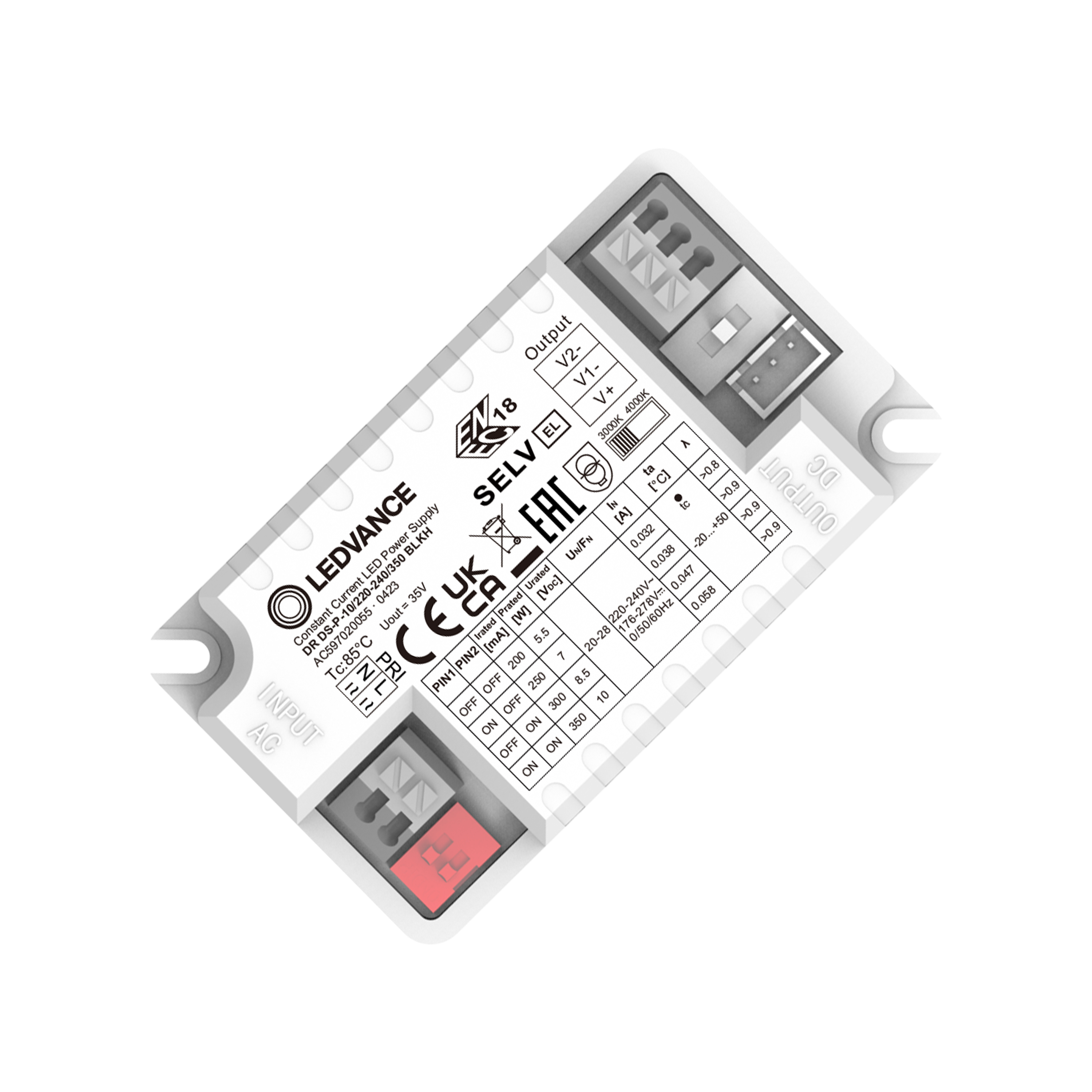

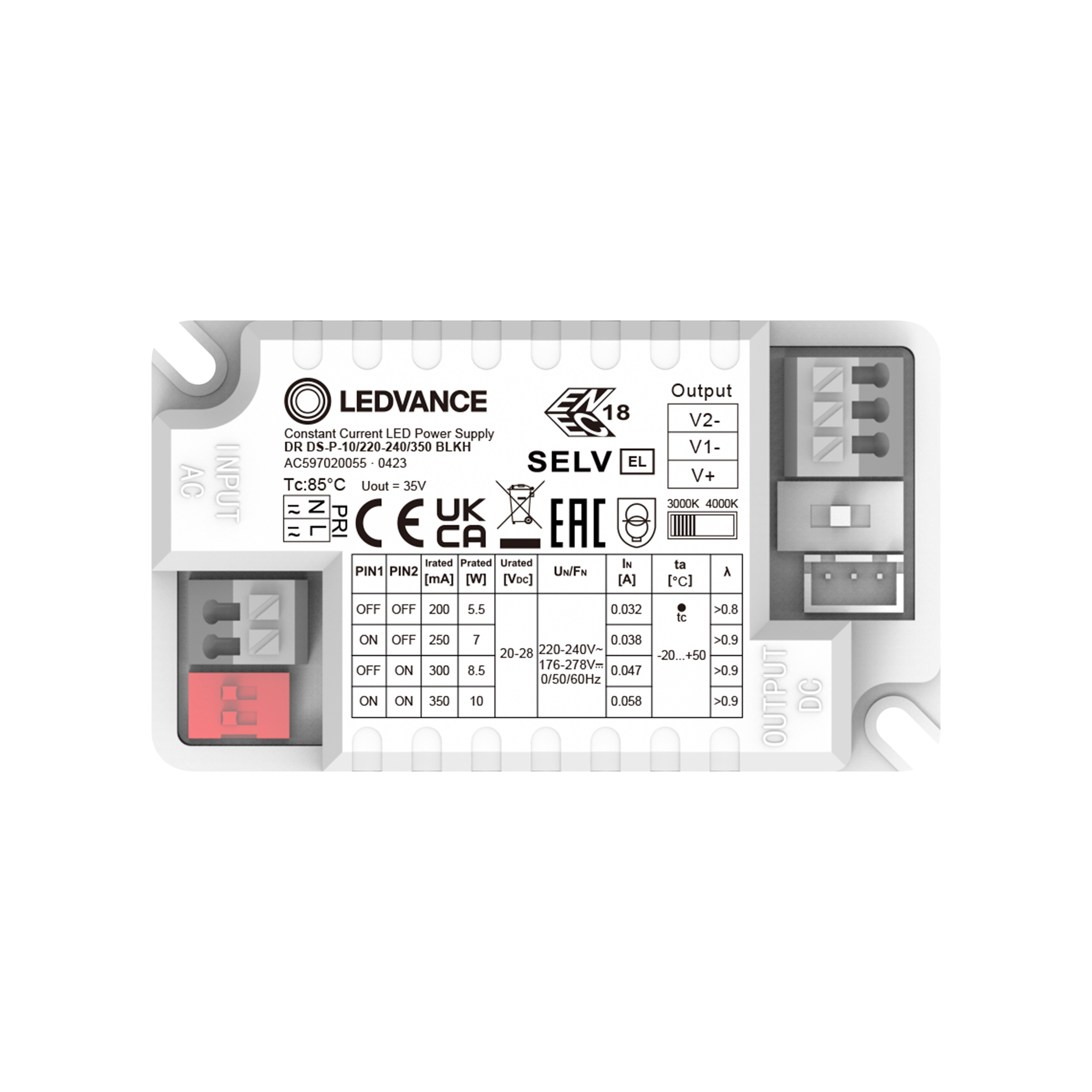

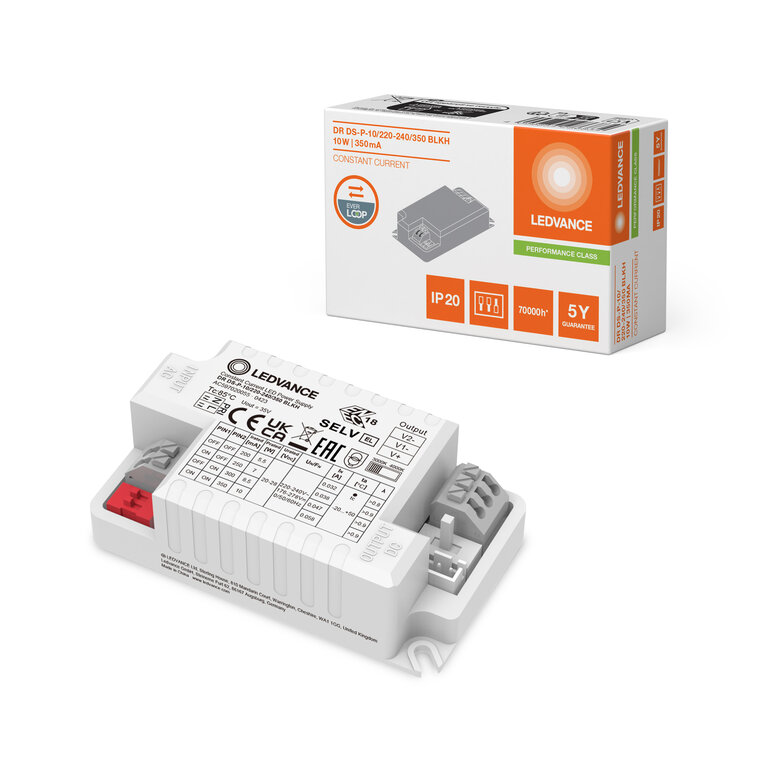

| DR DS-P- 10/220-240/350 BLKH | 10.00 W | 100000 | No |
| DR DS-P- 18/220-240/370 BLKH | 19.00 W | 100000 | No |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 58 mA |
| Inrush current | 3.38 A |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
| Length | 79.00 mm |
| Height | 25.00 mm |
| Width | 45.00 mm |
| Product weight | 48.00 g |
| Product color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
| Replaceable light source | No |
| Number of switching cycles | 100000 |
| Nominal output current | 350 mA, 300 mA, 250 mA, 200 mA |
| ECG lifetime | 70000 h |

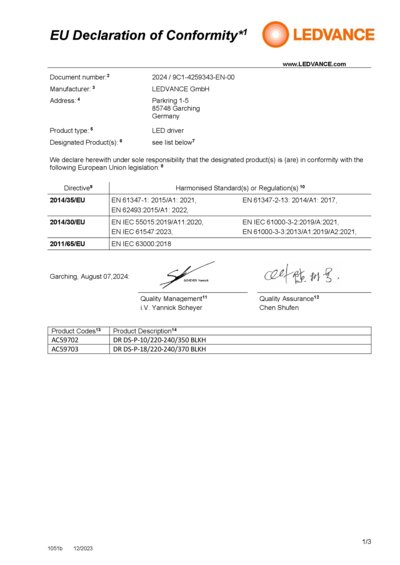

| Standards | CE, CB, UKCA, EAC, ENEC |

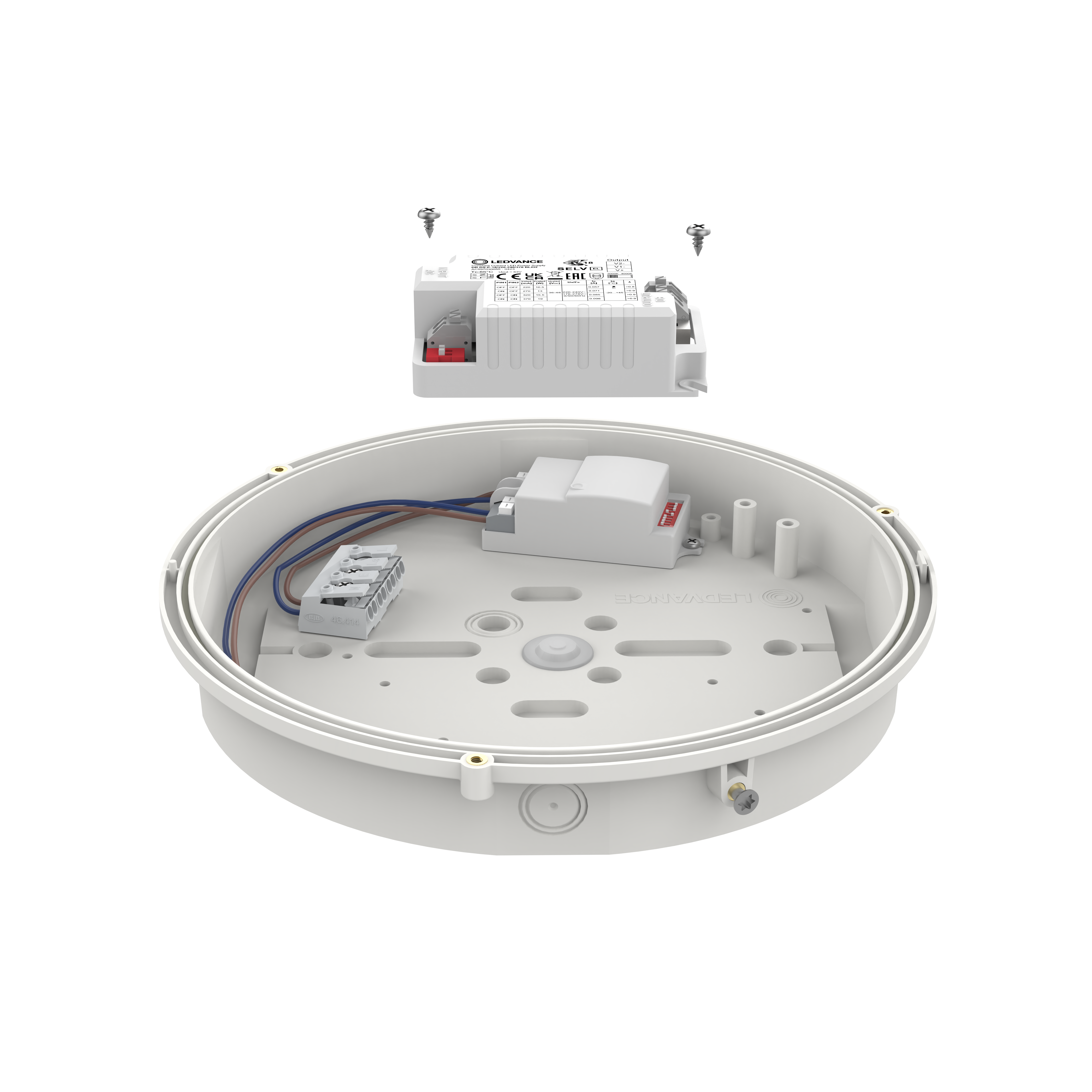

| Added function | EVERLOOP |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854286834 | Folding box 1 |
30 mm x 55 mm x 85 mm | 56.00 g | 0.14 dm³ |
| 4099854286841 | Shipping box 160 |
460 mm x 320 mm x 185 mm | 9598.00 g | 27.23 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4099854286834 | 7982596 | 4152090 | 3378153 | 919576730 |
