LINEAR INDIVILED DIRECT 1500 PS

Choose your product version

1500 P 52W 930 PS BK

1500 P 52W 940 PS BK

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN INV D 1500 P 52W 930 PS BK 52 W / 48 W / 46 W / 40 W 25000 90 ° 5900 lm / 5500 lm / 5300 lm / 4700 lm No
LN INV D 1500 P 52W 940 PS BK 52 W / 48 W / 46 W / 40 W 25000 90 ° 6350 lm / 5900 lm / 5700 lm / 5050 lm No


LN INV D 1500 P 52W 930 PS BK

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI90 and up to 130 lm/W
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver
  • Symmetric light distribution for various application areas
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Multiple mounting options thanks to different accessories
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 52 W / 48 W / 46 W / 40 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 240…220…205…185 mA
Inrush current 14,6 A
Inrush current time Th50 170 µs
Max. number of luminaires per miniature circuit breaker B16 28
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ > 0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5900 lm / 5500 lm / 5300 lm / 4700 lm
Luminous efficacy 113 lm/W / 115 lm/W / 118 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥90
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 90 °
UGR < 19

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
52 W 3000 K 5900 lm 113 lm/W
48 W 3000 K 5500 lm 115 lm/W
46 W 3000 K 5300 lm 115 lm/W
40 W 3000 K 4700 lm 118 lm/W

Dimensions & Weight

Length 1475.00 mm
Height 43.00 mm
Width 125.00 mm
Product weight 3900.00 g

Materials & Colors

Product color Black
Housing color Black
RAL Color (most similar) RAL 9005
Body material Aluminum
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP20
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050mA / 975mA / 900mA / 800 mA
ECG - Output ripple current ≤ 5 %
Recommended control gear OSRAM OT FIT 55/220–240/1A0 CS L AP

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00027-V01.01-EN
Replaceable light source (EPREL) By the end consumer

Additional product data

Number of illuminants 1
Added function EVERLOOP, MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy upgradeability of light source and driver (EVERLOOP design)
  • Homogenous light distribution and reduced glare (UGR ≤ 19) thanks to IndiviLED® optics
  • High performance with CRI90 and up to 130 lm/W
  • Highly versatile due to selectable power steps (Power Select - PS) on the driver
  • Symmetric light distribution for various application areas
  • High color consistency with SDCM 3
  • Easy installation
  • Low flicker light thanks to special electronic control gear
  • Multiple mounting options thanks to different accessories
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, education, public buildings
  • Single and continuous line configuration
  • Direct lighting
Product features
  • Minimalistic LEDVANCE SCALE design in extruded aluminum housing, available in white and black color
  • Includes EVERLOOP: Convenient replacement of light source and LED driver
  • Linkable into seamless light line with accessories (surface or pendant mounting)
  • Pendant mounting with suspension kit (to be ordered separetely)
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
  • Suspension kit available for pendant luminaire version (to be ordered separately)
  • Inline, corner and infill connectors available as separate accessory
  • Through-wiring cable kit available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854296789 Folding box
1		 177 mm x 1,530 mm x 102 mm 4600.00 g 27.62 dm³
4099854296796 Shipping box
2		 1,550 mm x 197 mm x 224 mm 10800.00 g 68.40 dm³
Product image Product name EAN
LN INV SUSPENSION KIT BK 4099854297069
LN INV SUSPENSION WIRE 4099854323980
LN INV CORNER CONNECTOR BK 4099854308079
LN INV INFILL 600 BK 4099854297045
LN INV INFILL 1200 BK 4099854297007
LN INV INFILL 1500 BK 4099854297021
User instruction / safety instructions
LN INV PDF (4.71 MB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal Insert G11235609 PDF (919.79 KB)
Legal information
LN INV D DI PDF (2.25 MB)
Declarations of conformity
LN INV PDF (298.65 KB)
Certificates
LN INV PDF (343.84 KB)
EPD
EPD EN LINEAR INDIVILE D DIRECT DALI PDF (664.53 KB)
Product image: white background, diagonal, alternative image
LN INV P BK JPG (829.34 KB)
Product image: white background, diagonal, alternative image
LN INV P BK JPG (810.98 KB)
Product image: white background, horizontal
LN INV P BK JPG (652.07 KB)
Product image: white background, upright
LN INV P BK JPG (1.07 MB)
Product image: white background, spacial
LN INV P BK JPG (811.73 KB)
Product image: white background, spacial
LN INV DI JPG (255.52 KB)
Product line drawing with letters
LN INV 1500 P SVG (92.47 KB)
Product line drawing with numbers
LN INV 1500 P SVG (98.42 KB)
Product line drawing, front, no dimensions
LN INV 1500 P SVG (88.67 KB)

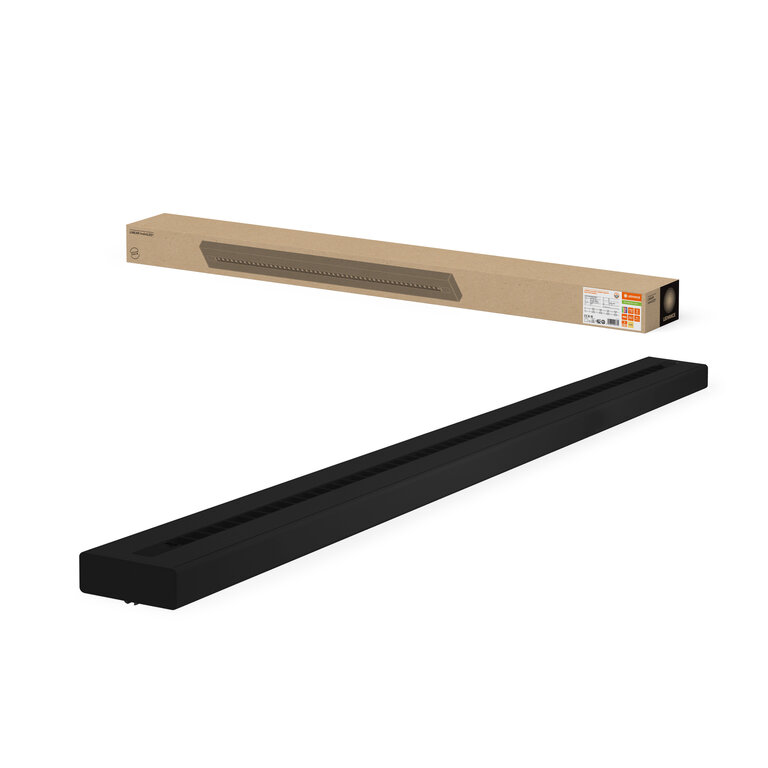

Combo Shot = Product Beauty Shot + Packaging Image
LN INV D 1500 P 52W 93 0 PS BK JPG (810.17 KB)

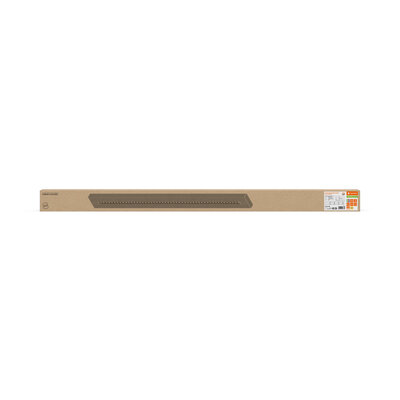

Packaging image, frontal
LN INV D 1500 P 52W 93 0 PS BK JPG (700.88 KB)

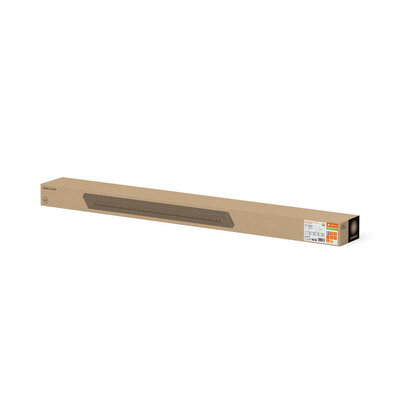

Packaging image, spacial
LN INV D 1500 P 52W 93 0 PS BK JPG (757.26 KB)

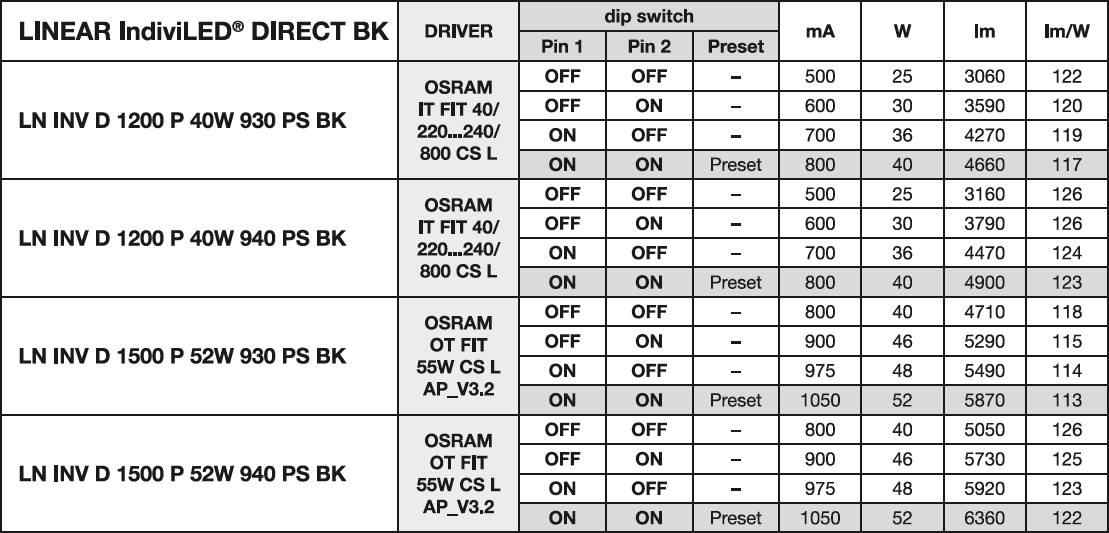

Catalog info 1
LN INV D PS BK PNG (97.31 KB)
Catalog info 3
LN INV PNG (123.54 KB)
Catalog info 6
Everloop Icon PNG (98.94 KB)
IES file (IES)
LN INV D 1500 P 52W 93 0 PS BK 1050mA IES (10.7 KB)
LDT file (Eulumdat)
LN INV D 1500 P 52W 93 0 PS BK 1050mA LDT (8.8 KB)
ULD file (DIALux)
LN INV D 1500 P 52W 93 0 PS BK ULD (210.94 KB)
ROLF file (RELUX)
LN INV D 1500 P 52W 93 0 PS BK ROLF (61.75 KB)

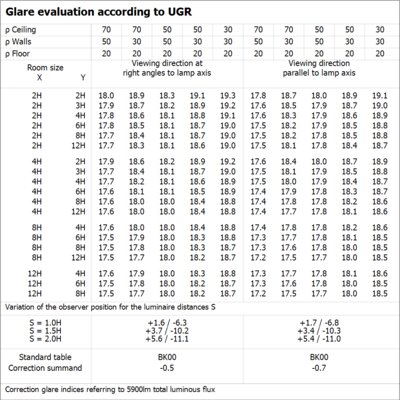

UGR file (UGR table)
LN INV D 1500 P 52W 93 0 PS BK 1050mA PNG (59.37 KB)
Light distribution curve type cone
LN INV D 1500 P 52W 93 0 PS BK 1050mA SVG (15.43 KB)
Light distribution curve type polar
LN INV D 1500 P 52W 93 0 PS SVG (17.34 KB)
BIM Revit 3D
Linear Indiviled G2 ZIP (11.41 MB)
CAD STEP 3D
LN INV D 1500 G2 STEP (11.71 MB)
EAN SEG number STK number ELDAS number UK Org
4099854296789 7028111 4152096 941302910 437368946
