PANEL FLEX 600 UGR<19 DALI

Choose your product version

30W 830 U19

30W 840 U19

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
PL FLEX 600 DALI S 30W 830 U19 30.00 W 100000 90 ° 4800 lm Yes
PL FLEX 600 DALI S 30W 840 U19 30.00 W 100000 90 ° 4860 lm Yes


PL FLEX 600 DALI S 30W 830 U19

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • High lumen output with up to 4860 lm
  • Energy savings thanks to high system efficacy: up to 160 lm/W
  • Good glare reduction (UGR ≤ 19)
  • High color consistency with SDCM 3
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 7 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 140.000 mA
Inrush current 4,4 A
Inrush current time Th50 440 µs
Max. number of luminaires per miniature circuit breaker B16 40
Max. number of luminaires per miniature circuit breaker C10 41
Max. number of luminaires per miniature circuit breaker C16 66
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 4800 lm
Luminous efficacy 155 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 90 °
UGR < 19

Dimensions & Weight

Length 595.00 mm
Height 32.00 mm
Width 595.00 mm
Product weight 1600.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polystyrene (PS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+50 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP40/IP20
Protection class IK (shock resistance) IK02
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Recessed/Suspended/Surface
Mounting location Ceiling
Application environment Indoor
Mounting length 595.00 mm
Mounting width 595.00 mm
Mounting depth 50 mm
Adjustable No
With light source Yes
Replaceable light source No

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 700 mA
ECG - Output ripple current < 5 %
ECG - Length 110 mm
ECG - Width 75 mm
ECG - Height 25 mm
Recommended control gear OTi DALI 50/220...240/1A4 NFC

Emergency lighting

Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately, EL certified driver (0Hz / DC operation) for central battery operation included
Wattage in emergency operation mode 6 W
Luminous flux in emergency operation mode 700 lm

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC, EPD, EL
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) By the end consumer

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • High lumen output with up to 4860 lm
  • Energy savings thanks to high system efficacy: up to 160 lm/W
  • Good glare reduction (UGR ≤ 19)
  • High color consistency with SDCM 3
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • 7 years guarantee
Areas of application
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc. to EN 60598-2-22
  • Lifetime (L80/B10): 100,000 h (at 25 °C), (L90/B10): 50,000 h (at 25 °C)
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Extruded aluminum frame, metal housing
  • Polystyrene diffuser
Equipment / Accessories
  • Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Serviceable luminaire: Upgrades and replacements available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854276750 Folding box
1		 35 mm x 685 mm x 600 mm 2055.00 g 14.39 dm³
4099854276767 Shipping box
4		 705 mm x 160 mm x 625 mm 9301.00 g 70.50 dm³
Product image Product name EAN
DR DS-P- 30/220-240/700 PL FLEX 600 4058075843684
EM CONVERSION BOX 4058075237025
PANEL Suspension Kit 4058075402928
PANEL RECESSED MOUNT CLIPS VAL 4x 4058075409859
PANEL 600 SURFACE MOUNT KIT H75 4058075472914
User instruction / safety instructions
PANEL FLEX PDF (3.52 MB)
Legal information
LSI PANEL FLEX PDF (2.76 MB)
Legal information
Legal Insert PL FLEX PDF (8.04 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
EM Insert PL FLEX PDF (3.16 MB)
Declarations of conformity
PL FLEX PDF (266.58 KB)
EPD
EPD EN PANEL FLEX DALI PDF (638.39 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)
Product image: white background, diagonal
PL PFM PL FLEX JPG (1.02 MB)
Product image: white background, upright
PL PFM PL FLEX JPG (1.55 MB)
Product image: white background, spacial
PL PFM PL FLEX JPG (663.8 KB)
Product image: white background, spacial
PL FLEX CONNECTOR JPG (694.32 KB)
Product image: white background, with accessory, alternative image
PL FLEX AND DRIVER JPG (300.28 KB)
Product line drawing with letters
PL PFM PL FLEX PL COMP SVG (11.29 KB)
Product line drawing with numbers
PL PFM PL FLEX SVG (18.54 KB)
Product line drawing, front, no dimensions
PL PFM PL FLEX PL COMP SVG (8.3 KB)
Combo Shot = Product Beauty Shot + Packaging Image

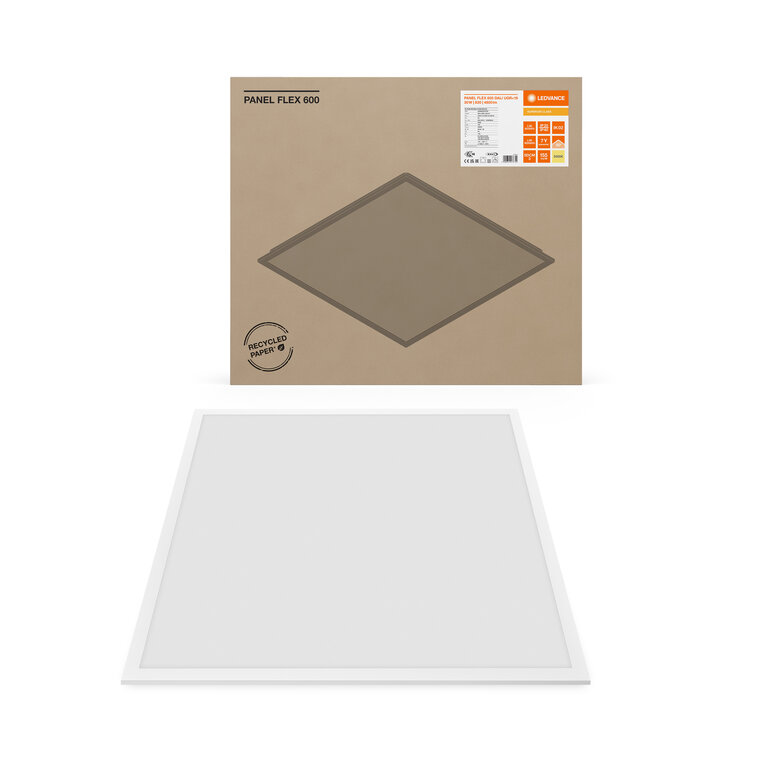

PL FLEX 600 DALI S 30W 830 U19 JPG (1.06 MB)

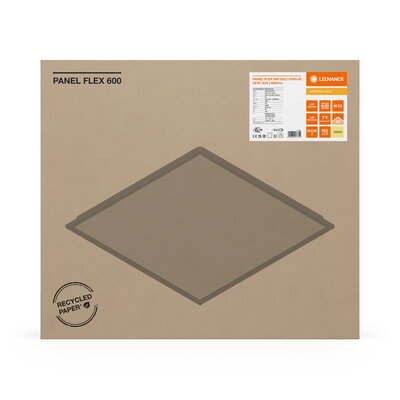

Packaging image, frontal
PL FLEX 600 DALI S 30W 830 U19 JPG (1.23 MB)

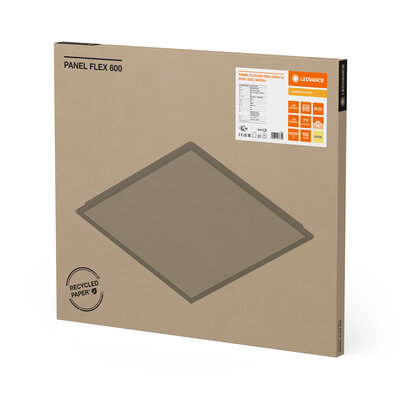

Packaging image, spacial
PL FLEX 600 DALI S 30W 830 U19 JPG (1.22 MB)
Catalog info 1
PL FLEX PNG (45.29 KB)
Catalog info 2
PL FLEX PNG (95.09 KB)
Catalog info 3
PL FLEX PNG (49.03 KB)
IES file (IES)
PL FLEX 600 DALI S 30W 3000K U19 4800lm IES (3.25 KB)
IES files (IES, additional)
PL FLEX 600 DALI S 3W 3000K U19 400lm EM BOX IES (3.25 KB)
IES files (IES, additional)
PL FLEX 600 DALI S 6W 3000K U19 750lm EM IES (3.25 KB)
LDT file (Eulumdat)
PL FLEX 600 DALI S 30W 3000K U19 4800lm LDT (2.91 KB)
LDT files (Eulumdat, additional)
PL FLEX 600 DALI S 3W 3000K U19 400lm EM BOX LDT (2.92 KB)
LDT files (Eulumdat, additional)
PL FLEX 600 DALI S 6W 3000K U19 750lm EM LDT (2.91 KB)
ULD file (DIALux)
PL FLEX 600 DALI S 30W 830 U19 ULD (210.43 KB)
ROLF file (RELUX)
PL FLEX 600 DALI S 30W 830 U19 ROLF (344.14 KB)
UGR file (UGR table)

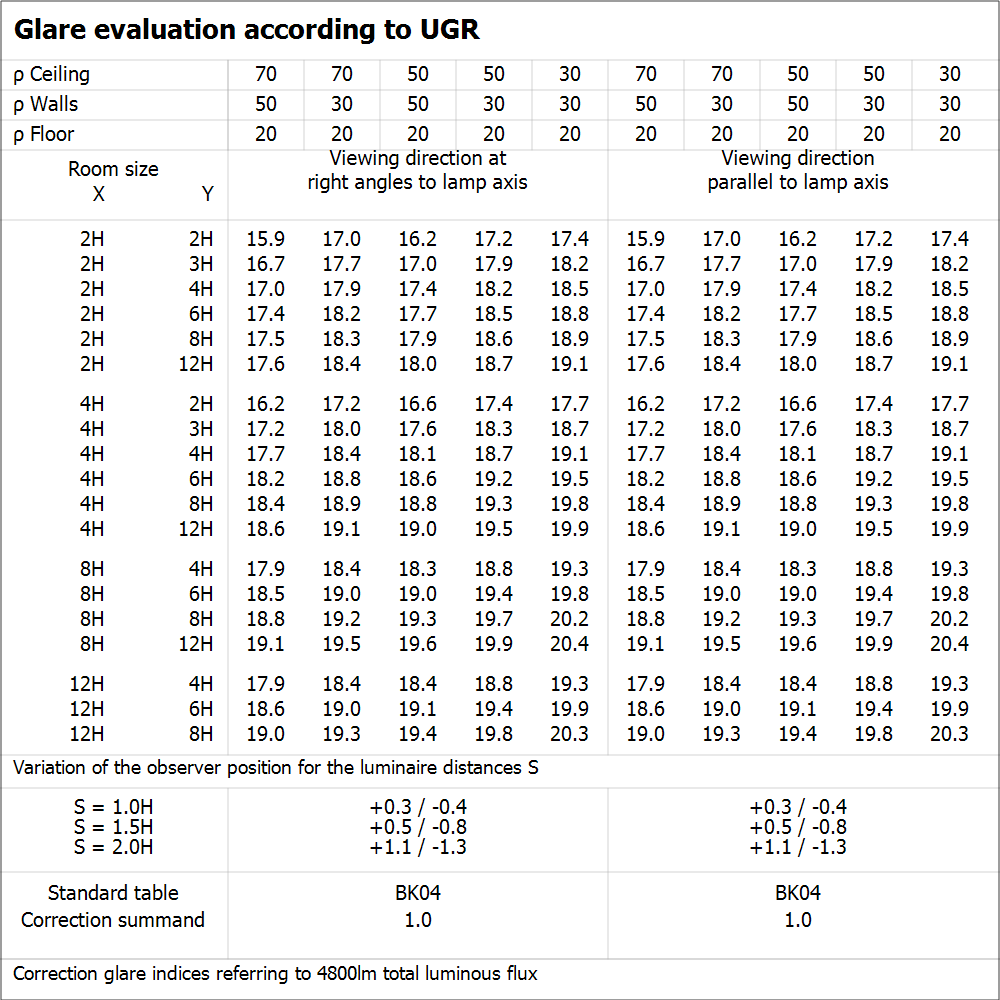

PL FLEX 600 DALI S 30W 3000K U19 4800lm PNG (55.77 KB)
UGR file (UGR table)

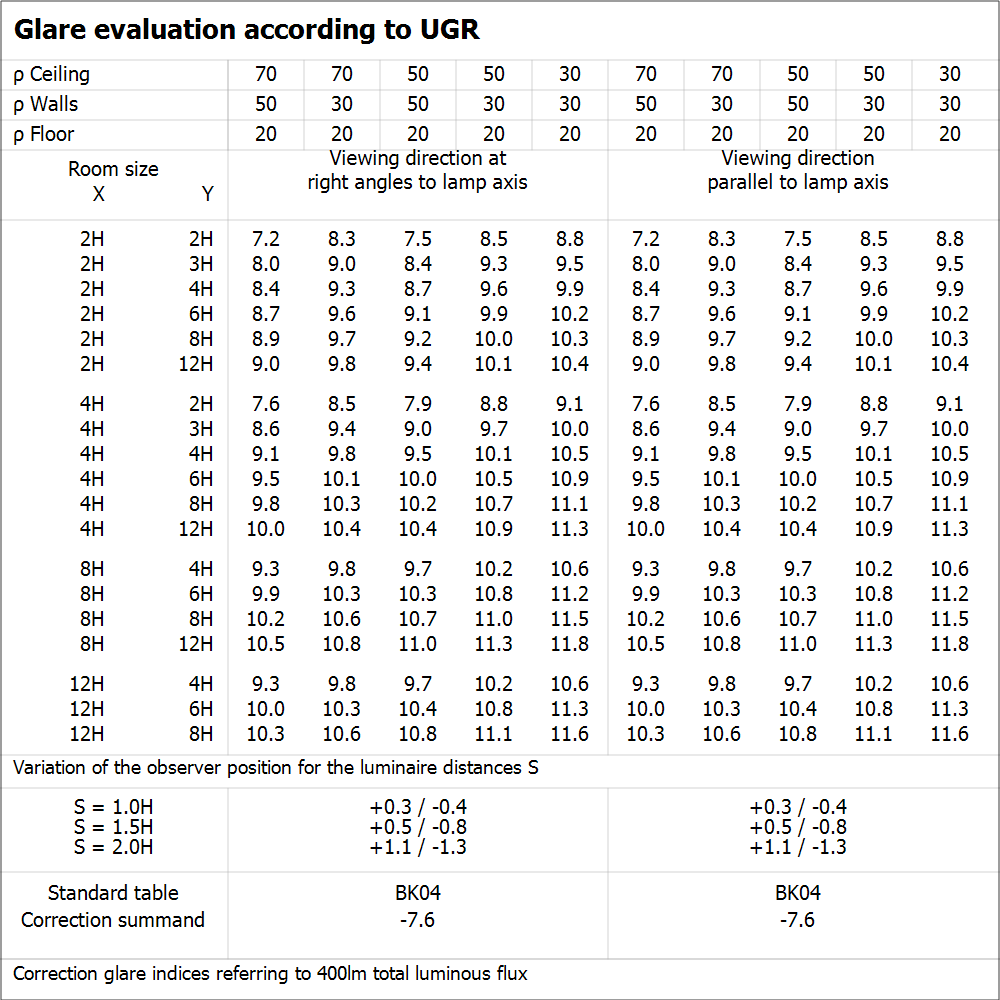

PL FLEX 600 DALI S 3W 3000K U19 400lm EM BOX PNG (55.16 KB)
UGR file (UGR table)

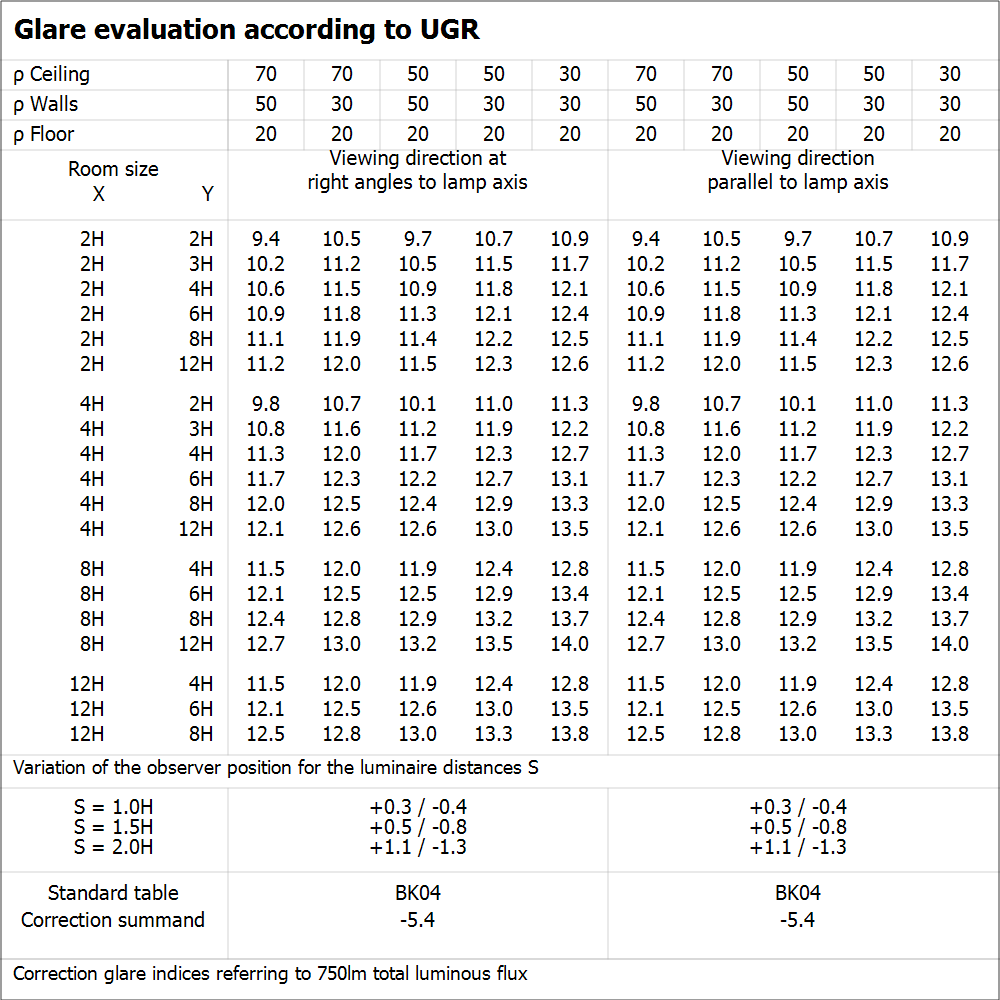

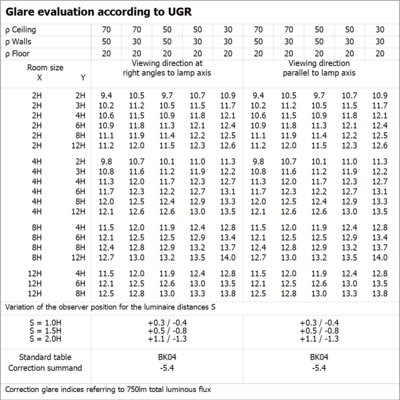

PL FLEX 600 DALI S 6W 3000K U19 750lm EM PNG (55.27 KB)
Light distribution curve type cone
PL FLEX 600 DALI S 30W 3000K U19 4800lm SVG (11.43 KB)
Light distribution curve type polar
PL FLEX 600 DALI S 30W 3000K U19 4800lm SVG (17.79 KB)
BIM Revit 3D
PL FLEX ZIP (1.38 MB)
CAD STEP 3D
PL FLEX 600 STEP (68.09 KB)
EAN SEG number STK number EFO number ELDAS number UK Org
4099854276750 7027834 4152035 3317155 941403200 437371784
