| Product description |
|---|

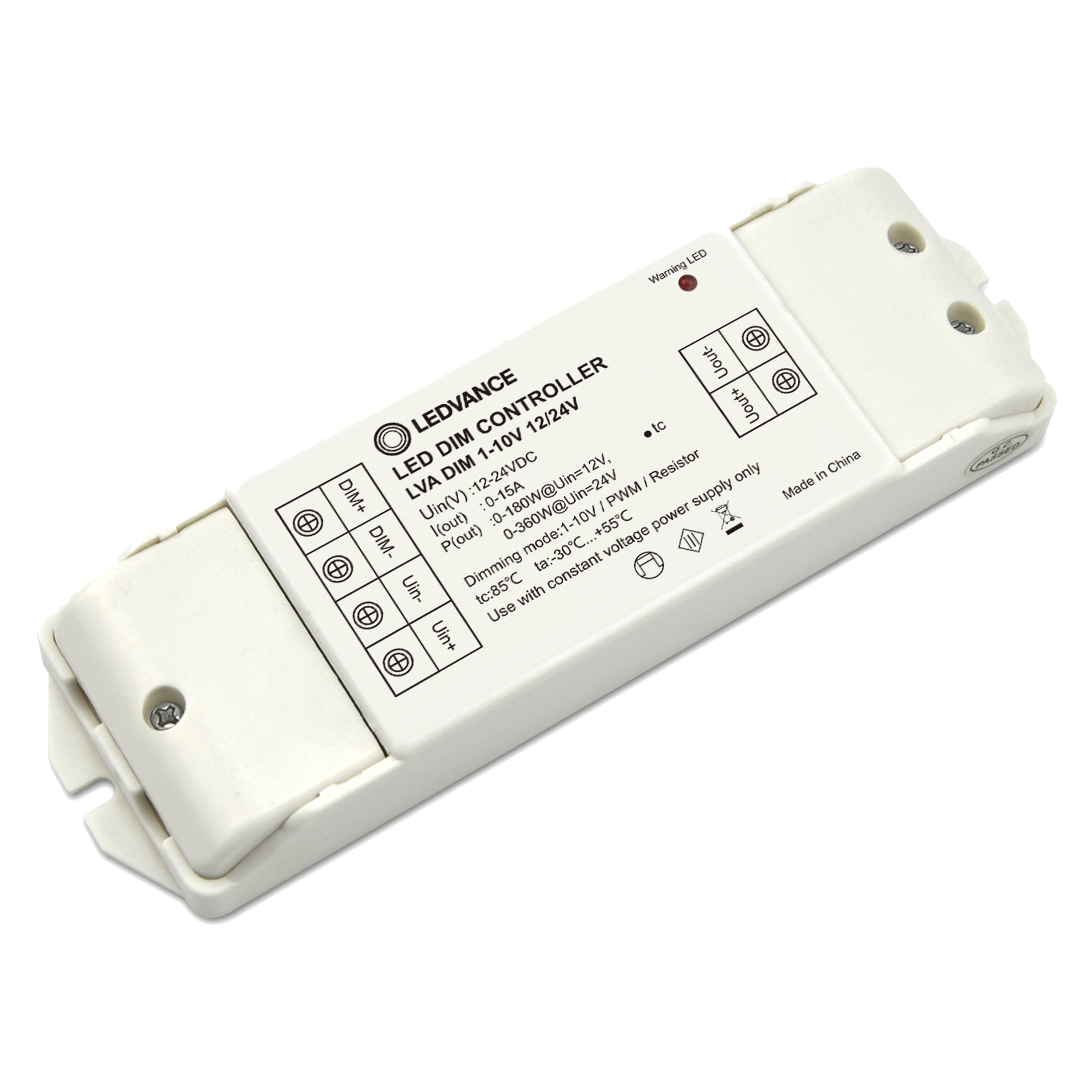

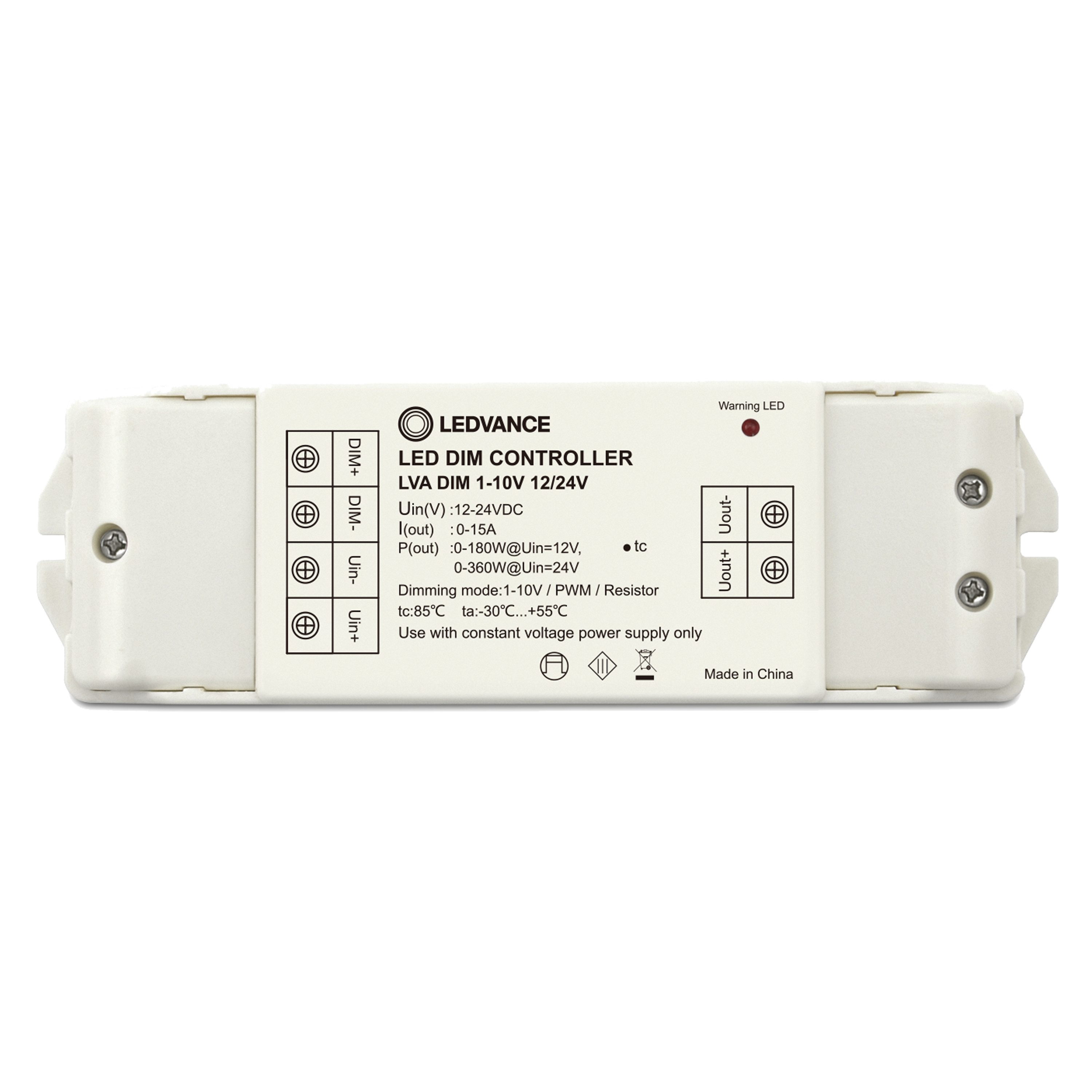

| LVA DIM 1-10 V 12/24 V |
| Nominal wattage | 360.00 W |
| Nominal output power | 180/360 W 1) |
| Nominal voltage | 12…24 V |
| Nominal output voltage | 12…24 V |
| Nominal output current | 0…15000 mA |
| Mains frequency | 50…60 Hz |
| Operating frequency | 0 kHz |
1) Max. 180 W at 12 V input / Max. 360 W at 24 V input
| Length | 167.00 mm |
| Width | 51.00 mm |
| Height | 23.00 mm |
| Product weight | 130.00 g |
| Casing material | Plastic |
| Body material | Plastic |
| Ambient temperature range | -30…+55 °C |
| Maximum temperature at tc test point | 85 °C |
| Max.housing temperature in case of fault | 110 °C |
| Dimmable | Yes |
| Dimming interface | 1…10 V, PWM, Resistor |
| Dimming range | 1…100 % |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Protection class | I |
| Type of protection | IP20 |
| Temperature range at storage | -40…+85 °C |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075216532 | Folding box 1 |
56 mm x 28 mm x 175 mm | 138.00 g | 0.27 dm³ |
| 4058075216549 | Shipping box 50 |
372 mm x 305 mm x 181 mm | 7384.00 g | 20.54 dm³ |
