Choose your product version
| Product description |
|---|

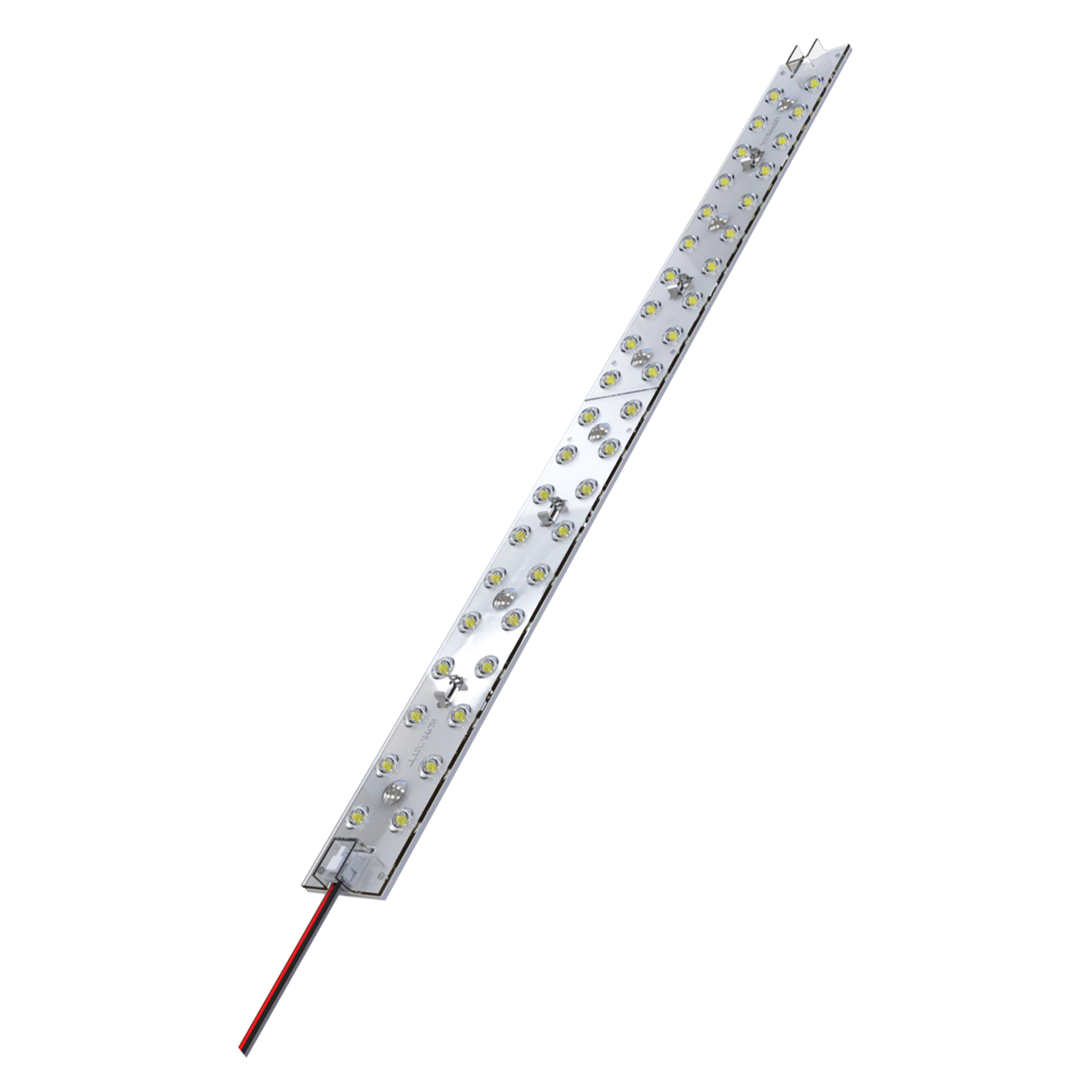

| Linear LED Module 2700-840-DC 18W |

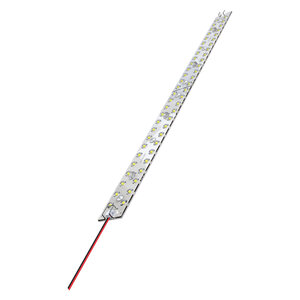

| Linear LED Module 3700-840-DC 25W |
| Nominal wattage | 18.00 W |
| Construction wattage | 18.00 W |
| Nominal voltage | 28 V |
| Type of current | DC |
| Nominal current | 600.000 mA |
| Luminous efficacy | 147 lm/W |
| Luminous flux | 2650 lm |
| Color temperature | 4000 K |
| Color rendering index Ra | 80 |
| Light color (designation) | Cool White |
| Beam angle | 155 ° |
| Length | 410.00 mm |
| Width | 35.00 mm |
| Height | 9.80 mm |
| Product weight | 95.00 g |
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 75 °C |
| Nominal lamp life time | 50000 h |
| Standards | Acc. to EN 60598, Acc. to EN 62031, Acc. to IEC 62471, Acc. to IEC 60598 |
| Type of protection | IP20 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075310704 | Unpacked 1 |
|||
| 4058075310711 | Shipping box 60 |
454 mm x 359 mm x 154 mm | 6468.00 g | 25.10 dm³ |
