Choose your product version
| Product description |
|---|
| LVED PRO 10/220…240/250 CS |

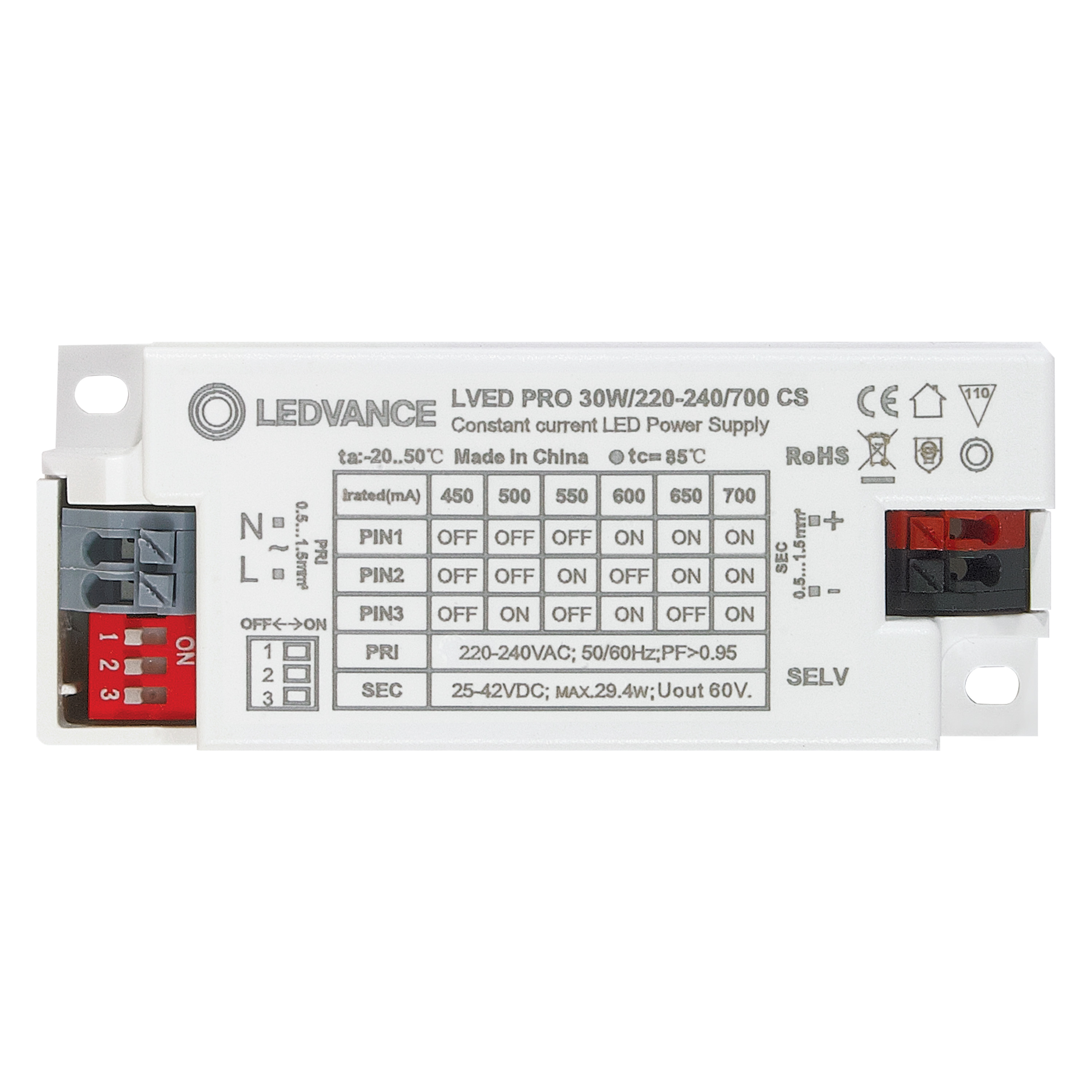

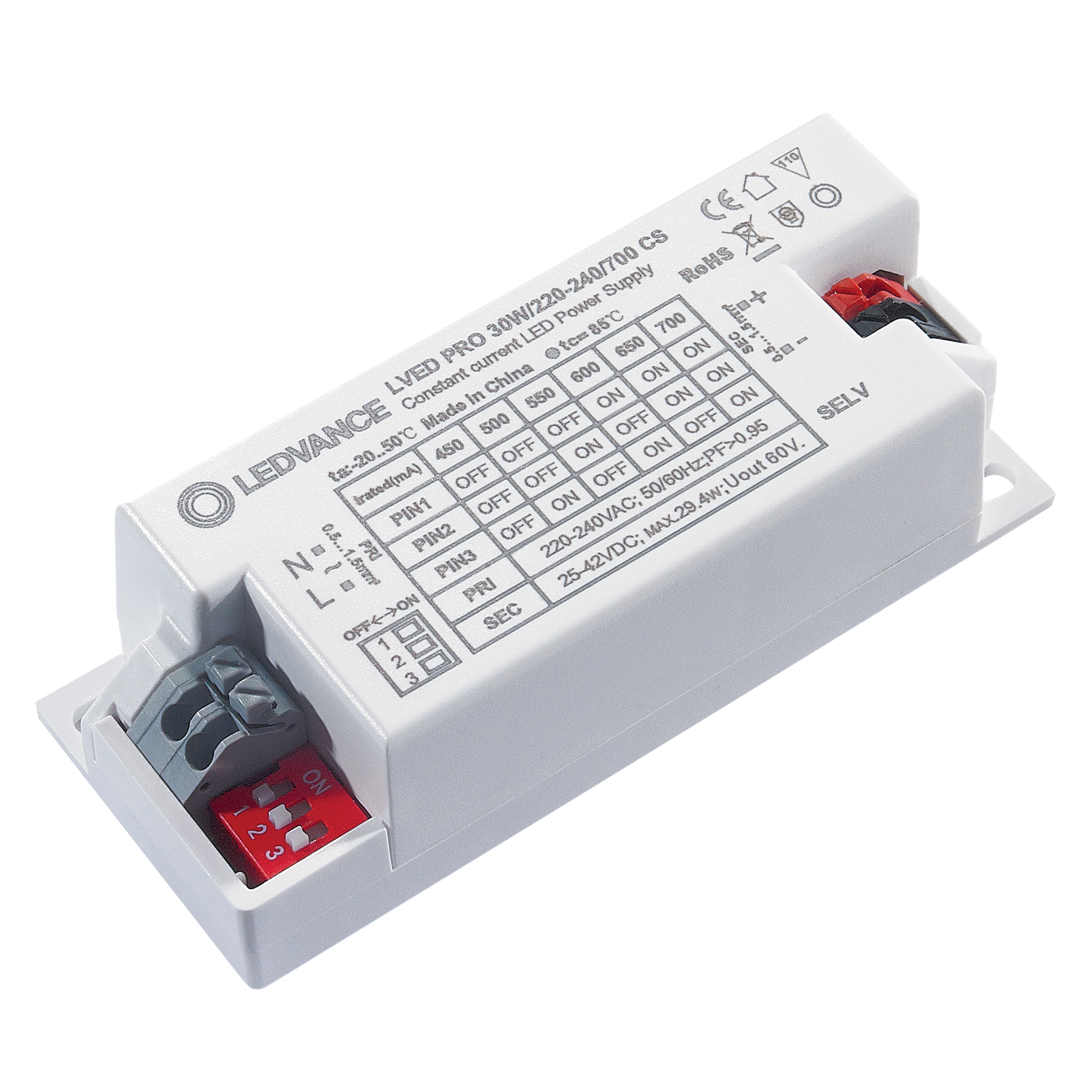

| LVED PRO 30/220…240/700 CS |
| Nominal wattage | 29.40 W |
| Nominal output power | 30 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 25…42 V |
| Input voltage AC | 198…264 V |
| Nominal current | 150 mA |
| Nominal output current | 450 mA, 500 mA, 550 mA, 600 mA, 650 mA, 700 mA 1) |
| Inrush current |
|
| Output current tolerance | ±5 % |
| Mains frequency | 50…60 Hz |
| Total harmonic distortion | 15 % |
| Power factor λ | 0.95 |
| ECG efficiency | 88 % 2) |
| Galvanic isolation | SELV |
| Operating frequency | 50/60 Hz |
1) Output current selectable by DIP SWITCH
2) At full load
| Length | 87.00 mm |
| Width | 35.00 mm |
| Height | 24.00 mm |
| Product weight | 80.00 g |
| Product color | White |
| Casing material | Plastic |
| Body material | Plastic |
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 85 °C |
| Max.housing temperature in case of fault | 110 °C |
| Temperature range in operation | -20…+50 °C |
| Dimmable | No |
| Dimming interface | Not dimmable |
| Overheating protection | No |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| No-load proof | Yes |
| Approval marks – approval | CB, CCC, CE, RoHS |
| Protection class | II |
| Type of protection | IP20 |
| Temperature range at storage | -40…+80 °C |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075240995 | Unpacked 1 |
36 mm x 26 mm x 89 mm | 84.00 g | 0.08 dm³ |
| 4058075241008 | Shipping box 40 |
289 mm x 204 mm x 123 mm | 3711.00 g | 7.25 dm³ |
