Choose your product version
| Product description |
|---|

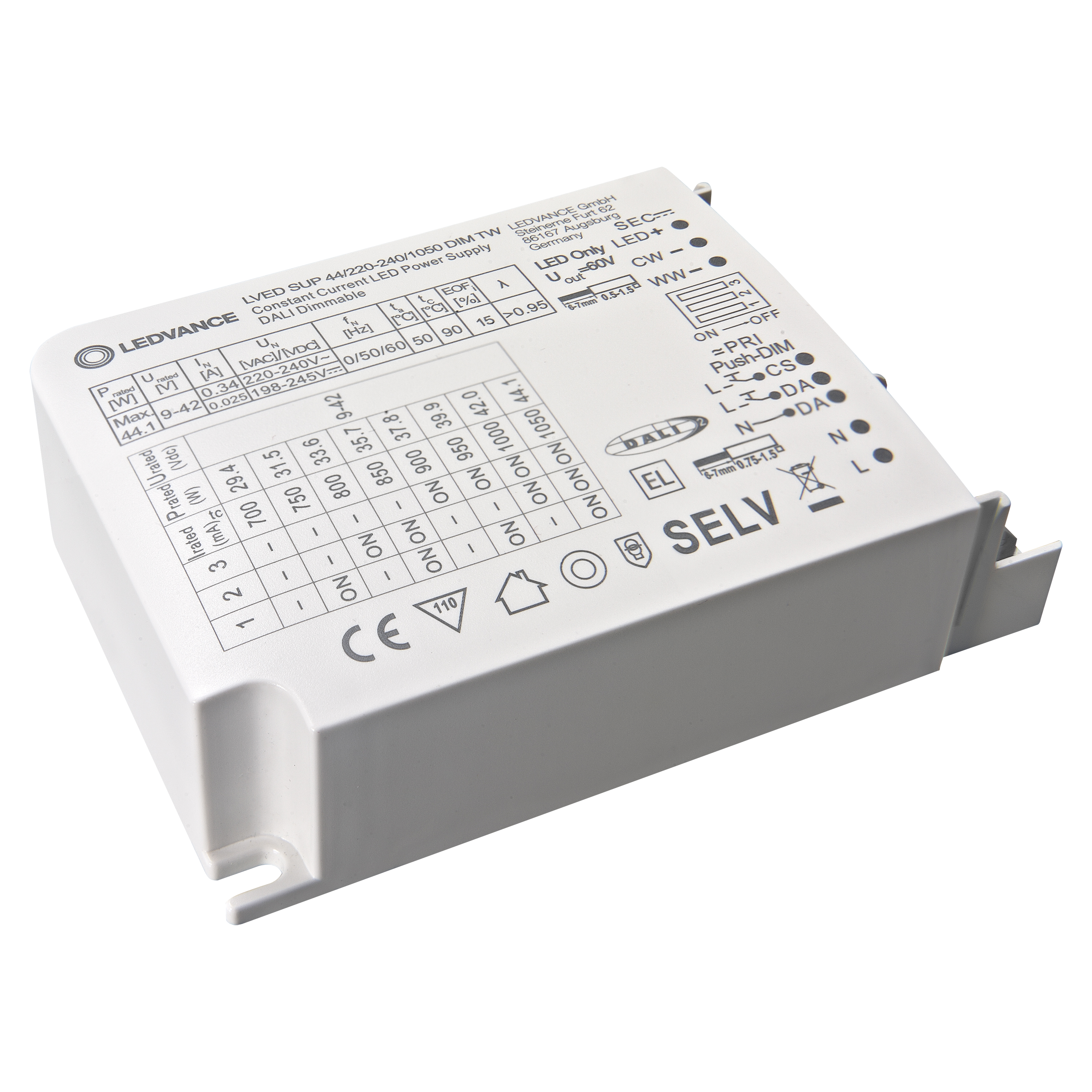

| LVED SUP 26/220-240/700 |
| LVED SUP 44/20-240/1050 |
| Nominal wattage | 26.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 220-240 V |
| Input voltage DC | 198…245 V |
| Output ripple current (100 Hz) | ≤ 3 % |
| Mains frequency | 0/50/60 Hz |
| Power factor λ | > 0.90 1) |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
| Operating frequency | 0/50/60 Hz |
1) At full load

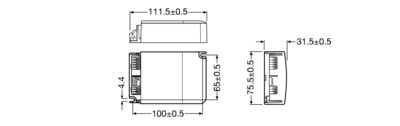

| Length | 111.50 mm |
| Width | 65.00 mm |
| Height | 31.50 mm |
| Product weight | 142.00 g |
| Body material | Polycarbonate (PC) |
| Ambient temperature range | -20…+50 °C |
| Dimmable | Yes |
| Dimming range | 1…100 % |
| Approval marks – approval | DALI-2, CB, EMC, CE, EL |
| Protection class | II |
| Type of protection | IP20 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075729520 | Unpacked 1 |
|||
| 4058075729537 | Shipping box 20 |
416 mm x 187 mm x 184 mm | 3922.00 g | 14.31 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
DR AY ZB+DALI CLAMP | 4058075483149 |
