Choose your product version
| Product description |
|---|

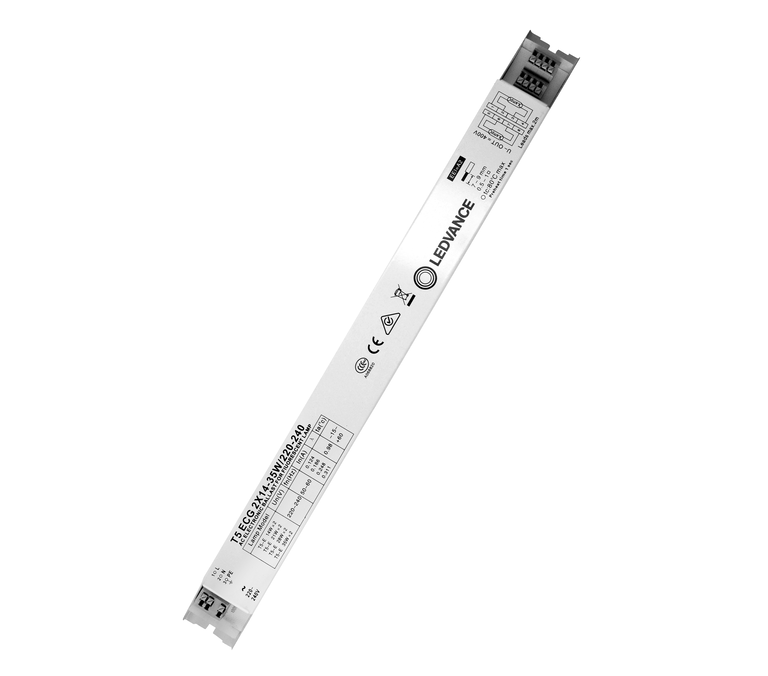

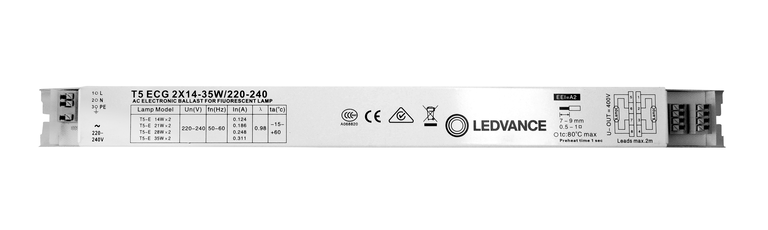

| T5 ECG 2X14…35/220…240 |
| Nominal wattage | 79.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | ≥0.93 |
| Length | 368.00 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Product weight | 150.00 g |
| Casing material | Metal |
| Body material | Metal |
| Ambient temperature range | -15…+60 °C |
| Maximum temperature at tc test point | 80 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 15…70 % 1) |
1) Inside the luminaires
| ECG lifetime | 30000 h 1) |
1) Tc = 80°C, with max. 10% failure rate
| Dimmable | No |
| Dimming interface | Not dimmable |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | No |
| Approval marks – approval | CB, CCC, CE, RCM |
| Protection class | I |
| Type of protection | IP20 |
| EEI – Energy Label | A2 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075147348 | Unpacked 1 |
|||
| 4058075147355 | Shipping box 20 |
382 mm x 165 mm x 105 mm | 3290.00 g | 6.62 dm³ |
