SubstiTUBE T8 EM PRO

Choose your product version

Phase out

5.4 W/3000 K 438 mm

Phase out

5.4 W/4000 K 438 mm

Phase out

6.7 W/4000 K 600 mm

Phase out

6.7 W/6500 K 600 mm

Phase out

10.3 W/4000 K 900 mm

Phase out

10.3 W/6500 K 900 mm

Phase out

12.1 W/4000 K 1050 mm

Phase out

12.1 W/6500 K 1050 mm

Phase out

12.7 W/4000 K 1200 mm

Phase out

12.7 W/6500 K 1200 mm

Phase out

18.8 W/4000 K 1500 mm

Phase out

18.8 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
SubstiTUBE T8 EM Pro 5.4 W/3000 K 438 mm G13 5.4 W 220…240 V 75000 h 810 lm 15 W 190 ° No
SubstiTUBE T8 EM Pro 5.4 W/4000 K 438 mm G13 5.4 W 220…240 V 75000 h 900 lm 15 W 190 ° No
SubstiTUBE T8 EM Pro 6.7 W/4000 K 600 mm G13 6.7 W 220…240 V 75000 h 1100 lm 18 W 190 ° No
SubstiTUBE T8 EM Pro 6.7 W/6500 K 600 mm G13 6.7 W 220…240 V 75000 h 1100 lm 18 W 190 ° No
SubstiTUBE T8 EM Pro 10.3 W/4000 K 900 mm G13 10.3 W 220…240 V 75000 h 1700 lm 30 W 190 ° No
SubstiTUBE T8 EM Pro 10.3 W/6500 K 900 mm G13 10.3 W 220…240 V 75000 h 1700 lm 30 W 190 ° No
SubstiTUBE T8 EM Pro 12.1 W/4000 K 1050 mm G13 12.1 W 220…240 V 75000 h 2000 lm 38 W 190 ° No
SubstiTUBE T8 EM Pro 12.1 W/6500 K 1050 mm G13 12.1 W 220…240 V 75000 h 2000 lm 38 W 190 ° No
SubstiTUBE T8 EM Pro 12.7 W/4000 K 1200 mm G13 12.7 W 220…240 V 75000 h 2100 lm 36 W 190 ° No
SubstiTUBE T8 EM Pro 12.7 W/6500 K 1200 mm G13 12.7 W 220…240 V 75000 h 2100 lm 36 W 190 ° No
SubstiTUBE T8 EM Pro 18.8 W/4000 K 1500 mm G13 18.8 W 220…240 V 75000 h 3100 lm 58 W 190 ° No
SubstiTUBE T8 EM Pro 18.8 W/6500 K 1500 mm G13 18.8 W 220…240 V 75000 h 3100 lm 58 W 190 ° No
Phase out


SubstiTUBE T8 EM Pro 12.1 W/4000 K 1050 mm

Product benefits
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 12.1 W
Construction wattage 12.10 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 55 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 82
Max. lamp number on MCB B10 A - CCG without compensation 82
Max. lamp number on MCB B10 A - CCG with compensation 13
Max. lamp number on MCB B16 A 131
Max. lamp number on MCB B16 A - CCG without compensation 131
Max. lamp number on MCB B16 A - CCG with compensation 21
Total harmonic distortion 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 2000 lm
Luminous efficacy 165 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool white
Color temperature 4000 K
Color rendering index Ra 83
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1060.00 mm
Length with base excl. base pins/connection 1050.00 mm
Diameter 26.70 mm
Product weight 164.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 75000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class C 1)
Energy consumption 13.00 kWh/1000h
Type of protection IP20
Standards CE, VDE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 EM P

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power No
Length 1060.00 mm
Height 26.70 mm
Width 26.70 mm
Chromaticity coordinate x 0.382
Chromaticity coordinate y 0.380
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 563398
Model number AC34933

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • VDE certified according to IEC62776
  • Single and tandem operation on conventional control gear (0.6 m version)
  • Type of protection: IP20
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Disconnect mains before installation.
  • Not suitable for emergency lighting.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075612235 Sleeve
1		 1,147 mm x 29 mm x 29 mm 195.00 g 0.96 dm³
4058075612242 Shipping box
10		 1,195 mm x 210 mm x 115 mm 2660.00 g 28.86 dm³
4058075801172 Shipping box
10		 1,124 mm x 164 mm x 78 mm 2421.00 g 14.38 dm³
Declarations of conformity
PDF (305.64 KB)
Product image: white background, diagonal with OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (915.08 KB)
Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)
Product image: white background, diagonal, alternative image
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (683.01 KB)
Product image: white background, horizontal, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM horizontal JPG (135.08 KB)
Product image: white background, upright, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (656.82 KB)
Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
Product line drawing with numbers
LEDTUBE T8 EM PRO 1050 12.1W SVG (86.04 KB)
Product line drawing, front, no dimensions
338275_SubstiTUBE Basi c ST8-HB SVG (3.88 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)
Energy label
EL-4058075612235-AC349 33 PDF (21.47 KB)
Logos and pictos
C left SVG (2.36 KB)
Logos and pictos
C left BW SVG (1.07 KB)
Logos and pictos
C right SVG (2.35 KB)
Logos and pictos
C right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T8 EM PRO 1050 12.1W 840 IES (10.15 KB)
LDT file (Eulumdat)
LEDTUBE T8 EM PRO 1050 12.1W 840 LDT (11.93 KB)

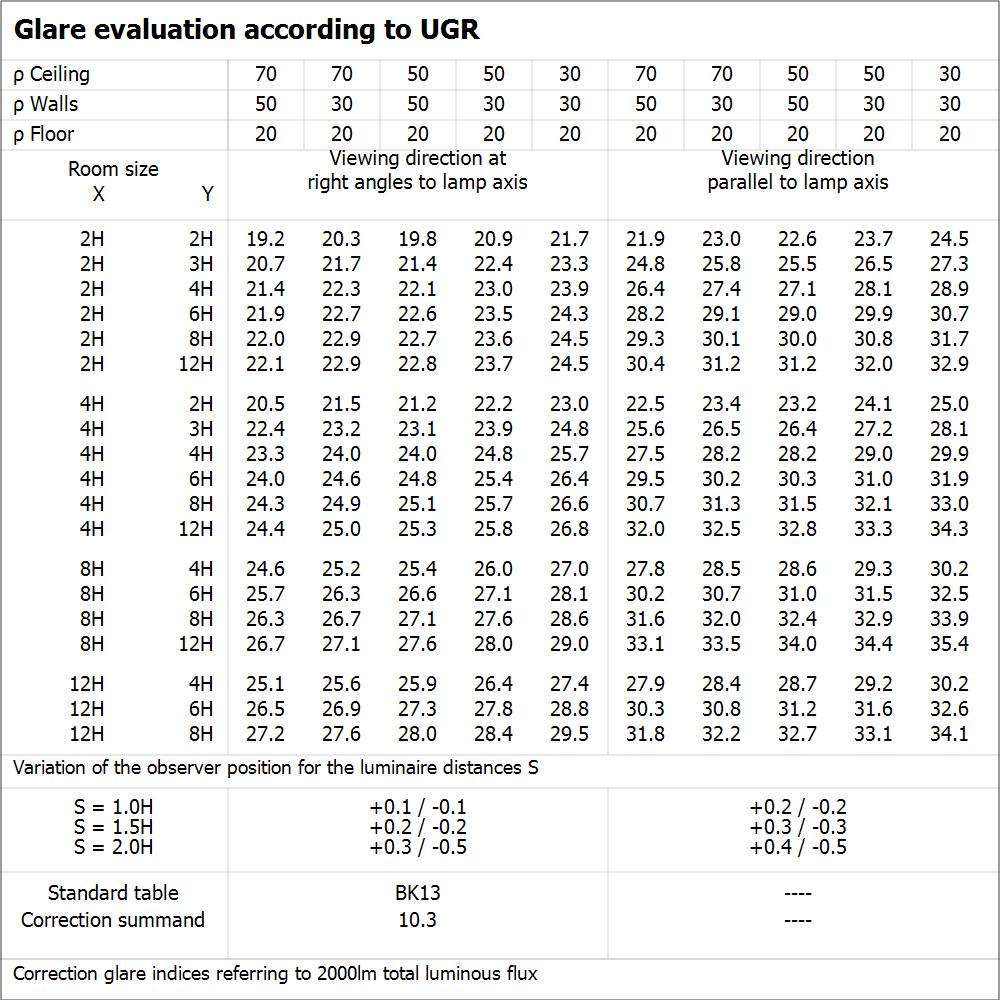

UGR file (UGR table)
LEDTUBE T8 EM PRO 1050 12.1W 840 PNG (63.87 KB)
Light distribution curve type polar
LEDTUBE T8 EM PRO 1050 12.1W 840 SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
EAN SEG number STK number EFO number
4058075612235 8296688 4930512 3755108
