SubstiTUBE T5 ECO

Choose your product version

8 W/4000 K 547.80 mm

8 W/6500 K 547.80 mm

16 W/4000 K 1147.80 mm

16 W/6500 K 1147.80 mm

18 W/4000 K 1447.80 mm

18 W/6500 K 1447.80 mm

26 W/4000 K 1147.80 mm

26 W/6500 K 1147.80 mm

37 W/4000 K 1447.80 mm

37 W/6500 K 1447.80 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
ST5HE14-AC  8 W/4000 K 547.80 mm G5 8 W 220…240 V 20000 h 900 lm 14 W › 160.00 ° No
ST5HE14-AC  8 W/6500 K 547.80 mm G5 8 W 220…240 V 20000 h 900 lm 14 W › 160.00 ° No
ST5HE28-AC  16 W/4000 K 1147.80 mm G5 16 W 220…240 V 20000 h 1800 lm 28 W › 160.00 ° No
ST5HE28-AC  16 W/6500 K 1147.80 mm G5 16 W 220…240 V 20000 h 1800 lm 28 W › 160.00 ° No
ST5HE35-AC  18 W/4000 K 1447.80 mm G5 18 W 220…240 V 20000 h 2000 lm 35 W › 160.00 ° No
ST5HE35-AC  18 W/6500 K 1447.80 mm G5 18 W 220…240 V 20000 h 2000 lm 35 W › 160.00 ° No
ST5HO54-AC  26 W/4000 K 1147.80 mm G5 26 W 220…240 V 20000 h 2860 lm 54 W › 160.00 ° No
ST5HO54-AC  26 W/6500 K 1147.80 mm G5 26 W 220…240 V 20000 h 2860 lm 54 W › 160.00 ° No
ST5HO80-AC  37 W/4000 K 1447.80 mm G5 37 W 220…240 V 20000 h 4800 lm 80 W › 160.00 ° No
ST5HO80-AC  37 W/6500 K 1447.80 mm G5 37 W 220…240 V 20000 h 4800 lm 80 W › 160.00 ° No


ST5HE14-AC  8 W/4000 K 547.80 mm

Product benefits
  • No bending thanks to glass technology
  • Also suitable for operation at low temperatures
  • Quick, simple and safe replacement
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 220…240 V
Nominal current 59 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 900 lm
Luminous efficacy 112 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra > 80
Light color 840
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle › 160.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 547.80 mm
Diameter 17.80 mm
Maximum diameter 18 mm
Product weight 60.56 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards ROHS, EMC
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference ST514E-0.6M 8W/

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G5
Length 547.80 mm
Height 17.80 mm
Width 17.80 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Also suitable for operation at low temperatures
  • Quick, simple and safe replacement
Areas of application
  • Supermarkets and department stores
  • Industry
  • Public buildings, reception areas, offices, corridors, etc.
  • General illumination within ambient temperatures from -20…+45 °C
  • For indoor use only
Product features
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Professional LED lamps for line voltage
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075757202 Sleeve
1		 570 mm x 19 mm x 19 mm 69.00 g 0.21 dm³
4058075757219 Shipping box
25		 625 mm x 155 mm x 155 mm 2389.00 g 15.02 dm³

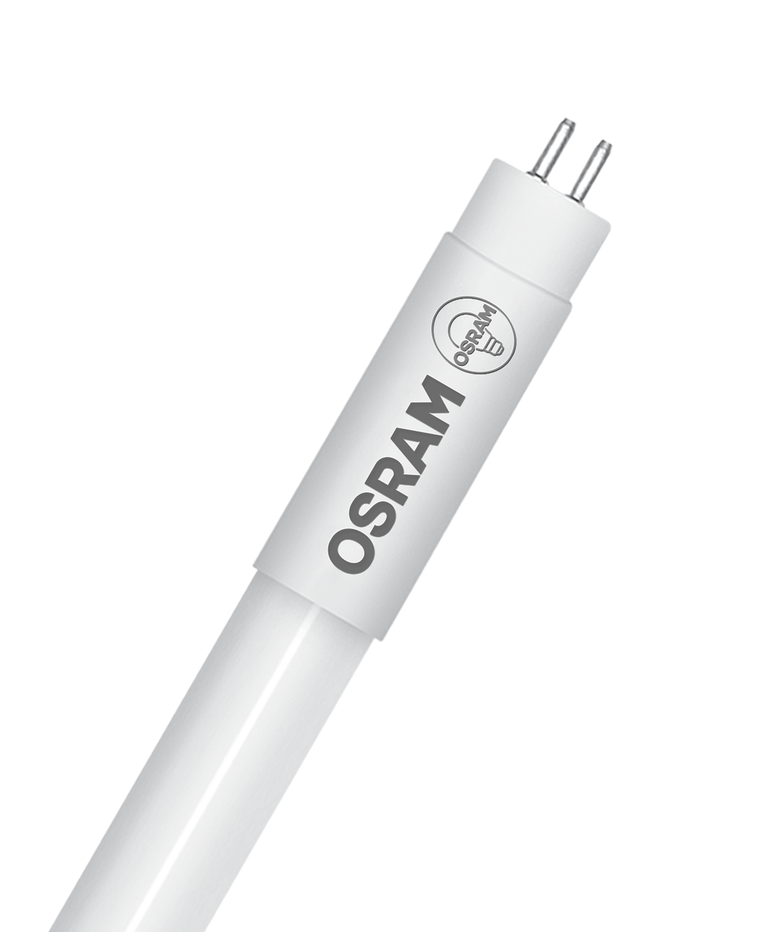

Product image: white background, diagonal with OSRAM logo
T5 OSRAM SubstiTube TIF (146.04 MB)

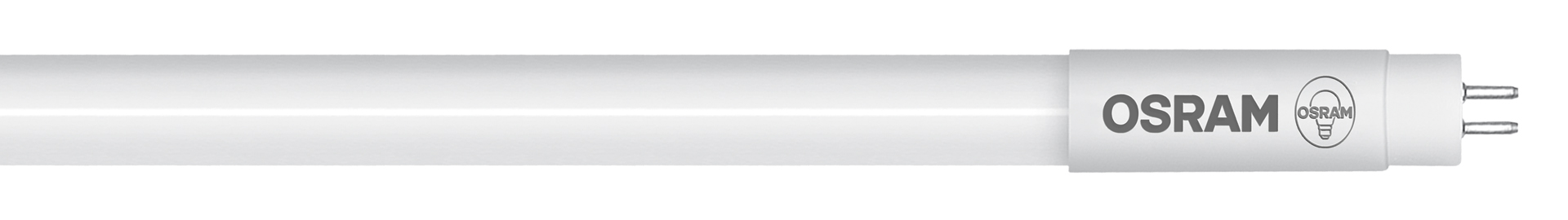

Product image: white background, horizontal, OSRAM logo
T5 OSRAM SubstiTube ho rizontal JPG (122.66 KB)

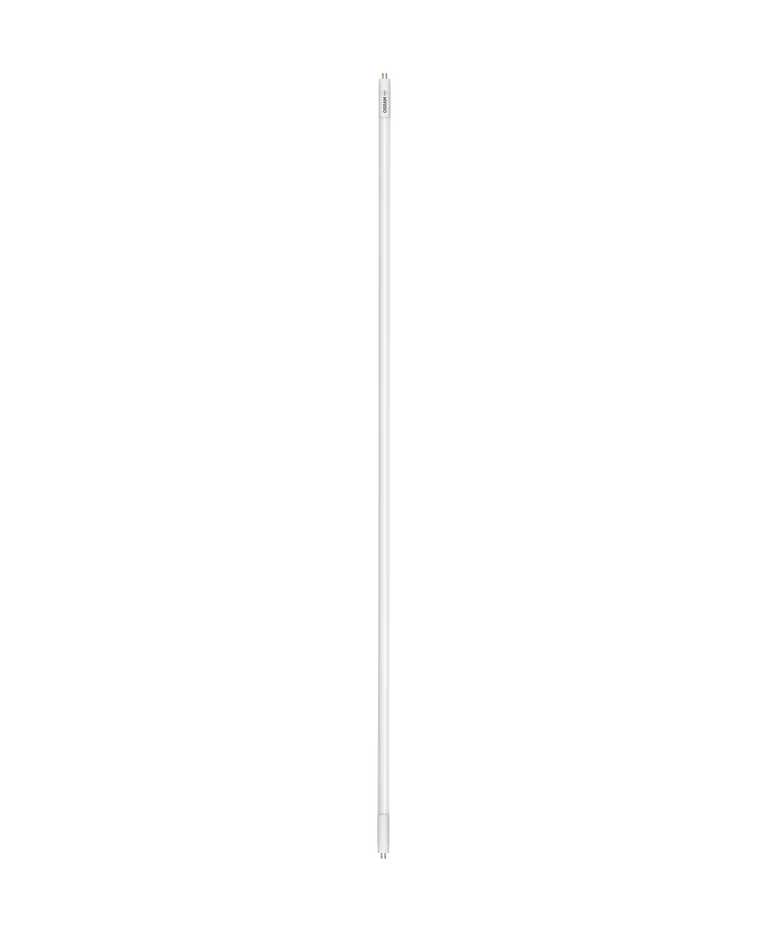

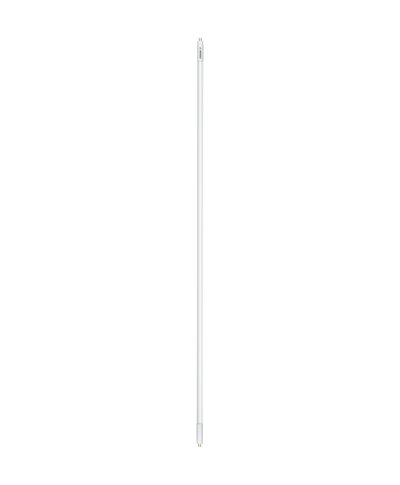

Product image: white background, upright, OSRAM logo
T5 LED tube TIF (72.64 MB)
Product line drawing with letters
product drawings T5 SVG (8.95 KB)
IES file (IES)
ST514E-0.6M 8W 840 230 V ACHE G5 OSRAM IES (20.6 KB)
Light distribution curve type polar
ST514E-0.6M 8W 840 230 V ACHE G5 OSRAM SVG (20.8 KB)
